Part Number	RURG3060	RURG8060	RURP3060	RURG5060	RUR3060	RURG3020
Manufacturer	onsemi	onsemi	onsemi	onsemi	Harris Corporation	Harris Corporation
Product Status	Obsolete	Active	Active	Obsolete	Active	Active
Diode Type	Standard	Standard	Standard	Standard	Avalanche	Avalanche
Voltage - DC Reverse (Vr) (Max)	600 V	600 V	600 V	600 V	600 V	200 V
Current - Average Rectified (Io)	30A	80A	30A	50A	30A	30A
Voltage - Forward (Vf) (Max) @ If	1.5 V @ 30 A	1.6 V @ 80 A	1.5 V @ 30 A	1.6 V @ 50 A	1.5 V @ 30 A	1 V @ 30 A
Speed	Fast Recovery =< 500ns, > 200mA (Io)	Fast Recovery =< 500ns, > 200mA (Io)	Fast Recovery =< 500ns, > 200mA (Io)	Fast Recovery =< 500ns, > 200mA (Io)	Fast Recovery =< 500ns, > 200mA (Io)	Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr)	60 ns	85 ns	60 ns	75 ns	60 ns	50 ns
Current - Reverse Leakage @ Vr	250 µA @ 600 V	250 µA @ 600 V	250 µA @ 600 V	250 µA @ 600 V	30 µA @ 600 V	250 µA @ 200 V
Capacitance @ Vr, F	-	-	-	-	-	-
Mounting Type	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole
Package / Case	TO-247-2	TO-247-2	TO-220-2	TO-247-2	TO-220-2	TO-247-3
Supplier Device Package	TO-247-2	TO-247-2	TO-220-2	TO-247-2	TO-220AC	TO-247
Operating Temperature - Junction	-65°C ~ 175°C	-65°C ~ 175°C	-55°C ~ 175°C	-65°C ~ 175°C	-55°C ~ 175°C	-65°C ~ 175°C

Diode Type:	Standard
Voltage - DC Reverse (Vr) (Max):	600 V
Current - Average Rectified (Io):	30A
Voltage - Forward (Vf) (Max) @ If:	1.5 V @ 30 A
Speed:	Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr):	60 ns
Current - Reverse Leakage @ Vr:	250 µA @ 600 V
Capacitance @ Vr, F:	-
Mounting Type:	Through Hole
Package / Case:	TO-247-2
Supplier Device Package:	TO-247-2
Operating Temperature - Junction:	-65°C ~ 175°C

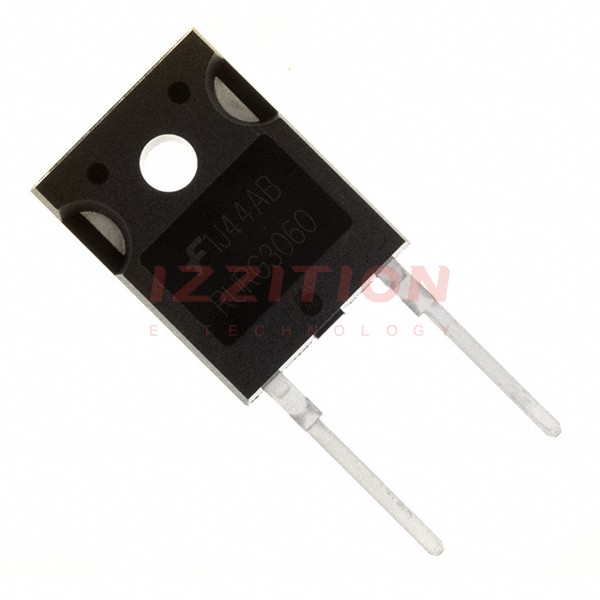

onsemi RURG3060
