onsemi-RHRP8120 - Diodes - Rectifiers - Single Product Specifications and Latest Quotes

Diode Type:	Standard
Voltage - DC Reverse (Vr) (Max):	1200 V
Current - Average Rectified (Io):	8A
Voltage - Forward (Vf) (Max) @ If:	3.2 V @ 8 A
Speed:	Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr):	70 ns
Current - Reverse Leakage @ Vr:	100 µA @ 1200 V
Capacitance @ Vr, F:	-
Mounting Type:	Through Hole
Package / Case:	TO-220-2
Supplier Device Package:	TO-220-2L
Operating Temperature - Junction:	-65°C ~ 175°C

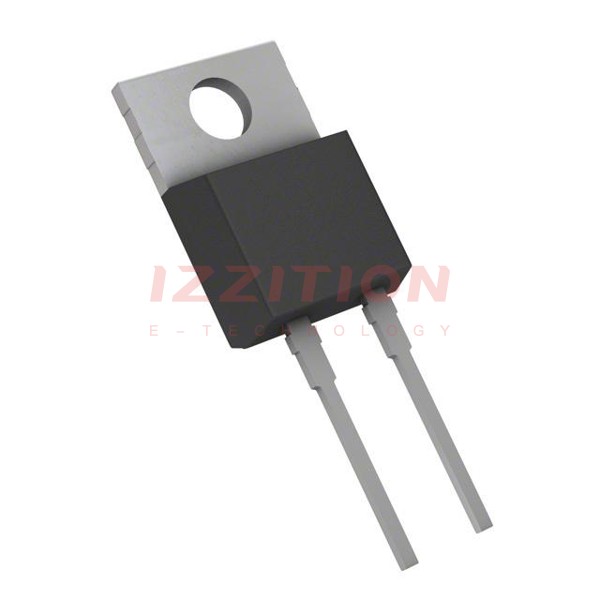

onsemi RHRP8120
