onsemi-RD2006FR-H - Diodes - Rectifiers - Single Product Specifications and Latest Quotes

Diode Type:	Standard
Voltage - DC Reverse (Vr) (Max):	600 V
Current - Average Rectified (Io):	20A
Voltage - Forward (Vf) (Max) @ If:	1.75 V @ 20 A
Speed:	Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr):	50 ns
Current - Reverse Leakage @ Vr:	100 µA @ 600 V
Capacitance @ Vr, F:	-
Mounting Type:	Through Hole
Package / Case:	TO-220-2
Supplier Device Package:	TO-220F
Operating Temperature - Junction:	150°C (Max)

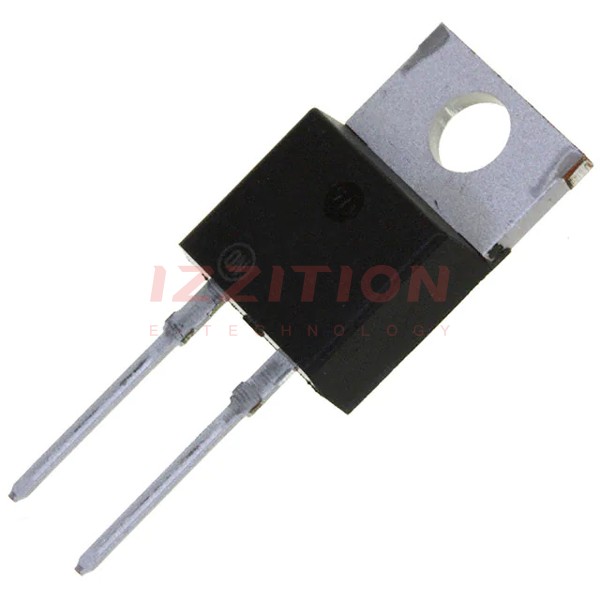

onsemi RD2006FR-H
