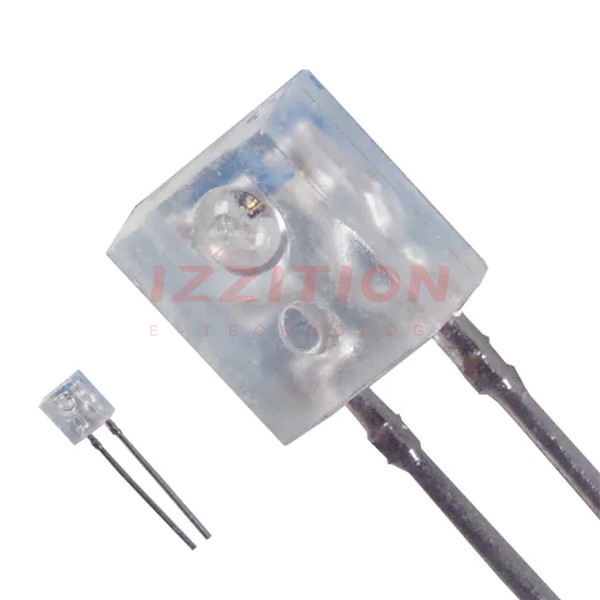

| Part Number | QEE123 | QEC123 | QED123 | QEE113 | QEE122 |
|---|---|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi | onsemi | onsemi |
| Product Status | Active | Obsolete | Active | Active | Active |
| Type | Infrared (IR) | Infrared (IR) | Infrared (IR) | Infrared (IR) | Infrared (IR) |
| Current - DC Forward (If) (Max) | 50mA | 50mA | 100mA | 50mA | 50mA |
| Radiant Intensity (Ie) Min @ If | 8mW/sr @ 100mA | 39mW/sr @ 100mA | 50mW/sr @ 100mA | 3mW/sr @ 100mA | 4mW/sr @ 100mA |
| Wavelength | 880nm | 880nm | 880nm | 940nm | 880nm |
| Voltage - Forward (Vf) (Typ) | 1.7V | 1.7V | 1.7V | 1.5V | 1.7V |
| Viewing Angle | 50° | 18° | 18° | 50° | 50° |
| Orientation | Side View | Top View | Top View | Side View | Side View |
| Operating Temperature | -40°C ~ 100°C (TA) | -40°C ~ 100°C (TA) | -40°C ~ 100°C (TA) | -40°C ~ 100°C (TA) | -40°C ~ 100°C (TA) |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial, Side View | Radial, 3mm Dia (T-1) | Radial, 5mm Dia (T 1 3/4) | Radial, Side View | Radial, Side View |
