Please send RFQ , we will respond immediately.

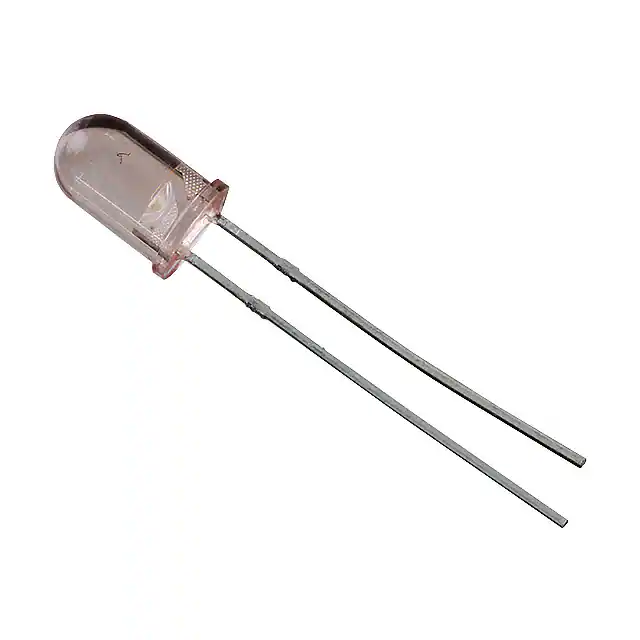

| Part Number | QED123A4R0 | QED223A4R0 |
|---|---|---|
| Manufacturer | onsemi | onsemi |
| Product Status | Active | Active |
| Type | Infrared (IR) | Infrared (IR) |
| Current - DC Forward (If) (Max) | 100mA | 100mA |
| Radiant Intensity (Ie) Min @ If | 50mW/sr @ 100mA | 25mW/sr @ 100mA |
| Wavelength | 890nm | 880nm |
| Voltage - Forward (Vf) (Typ) | 1.7V (Max) | 1.7V |
| Viewing Angle | 16° | 40° |
| Orientation | Top View | Top View |
| Operating Temperature | -40°C ~ 100°C (TA) | -40°C ~ 100°C (TA) |
| Mounting Type | Through Hole | Through Hole |
| Package / Case | Radial, 5mm Dia (T 1 3/4) | Radial, 5mm Dia (T 1 3/4) |
