Please send RFQ , we will respond immediately.

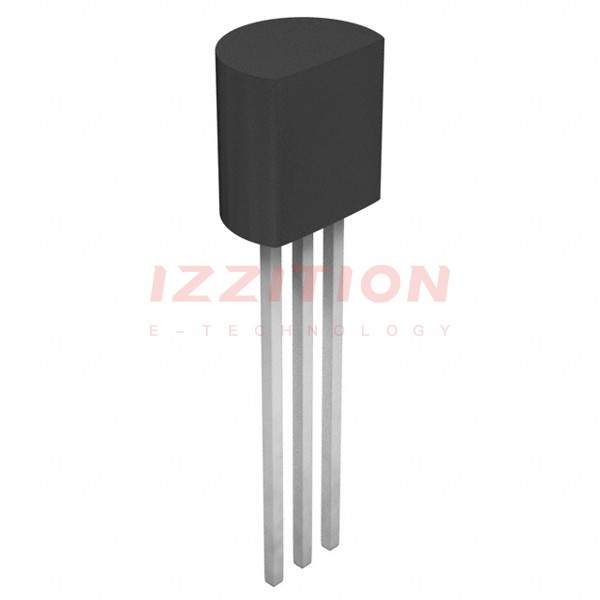

| Part Number | PN5133 | PN5134 | PN5138 | PN5135 | PN5139 |
|---|---|---|---|---|---|
| Manufacturer | onsemi | Fairchild Semiconductor | Fairchild Semiconductor | onsemi | onsemi |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Transistor Type | NPN | NPN | PNP | NPN | PNP |
| Current - Collector (Ic) (Max) | - | 500 mA | 500 mA | 200 mA | 100 mA |
| Voltage - Collector Emitter Breakdown (Max) | 18 V | 10 V | 30 V | 25 V | 20 V |
| Vce Saturation (Max) @ Ib, Ic | 400mV @ 100µA, 1mA | 250mV @ 1mA, 10mA | 300mV @ 500µA, 10mA | 1V @ 10mA, 100mA | 150mV @ 100µA, 1mA |
| Current - Collector Cutoff (Max) | - | 400nA | 50nA (ICBO) | 300nA (ICBO) | 50nA |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 60 @ 1mA, 5V | 20 @ 10mA, 1V | 50 @ 10mA, 10V | 50 @ 10mA, 10V | 40 @ 1mA, 10V |
| Power - Max | 625 mW | 625 mW | 625 mW | 625 mW | 625 mW |
| Frequency - Transition | - | - | - | - | - |
| Operating Temperature | - | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | 150°C (TJ) | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | TO-226-3, TO-92-3 Short Body | TO-226-3, TO-92-3 (TO-226AA) | TO-226-3, TO-92-3 (TO-226AA) | TO-226-3, TO-92-3 (TO-226AA) | TO-226-3, TO-92-3 Short Body |
| Supplier Device Package | TO-92S | TO-92-3 | TO-92-3 | TO-92-3 | TO-92S |
