| Part Number | PCP1402-TD-H | PCP1403-TD-H | PCP1405-TD-H | PCP1302-TD-H |
|---|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi | onsemi |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete |
| FET Type | N-Channel | N-Channel | N-Channel | P-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 250 V | 60 V | 250 V | 60 V |
| Current - Continuous Drain (Id) @ 25°C | 1.2A (Ta) | 4.5A (Ta) | 600mA (Ta) | 3A (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V | 4V, 10V | 2.5V, 4.5V | 4V, 10V |
| Rds On (Max) @ Id, Vgs | 2.4Ohm @ 600mA, 10V | 117mOhm @ 2A, 10V | 6.5Ohm @ 300mA, 4.5V | 266mOhm @ 1.5A, 10V |
| Vgs(th) (Max) @ Id | 3.5V @ 1mA | 2.6V @ 1mA | 1.3V @ 1mA | 2.6V @ 1mA |
| Gate Charge (Qg) (Max) @ Vgs | 4.2 nC @ 10 V | 6.7 nC @ 10 V | 2.1 nC @ 4.5 V | 6.4 nC @ 10 V |
| Vgs (Max) | ±30V | ±20V | ±10V | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 210 pF @ 20 V | 310 pF @ 20 V | 140 pF @ 20 V | 262 pF @ 20 V |
| FET Feature | - | - | - | - |
| Power Dissipation (Max) | 3.5W (Tc) | 3.5W (Tc) | 3.5W (Tc) | 3.5W (Tc) |
| Operating Temperature | 150°C (TJ) | 150°C (TJ) | 150°C (TJ) | 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |

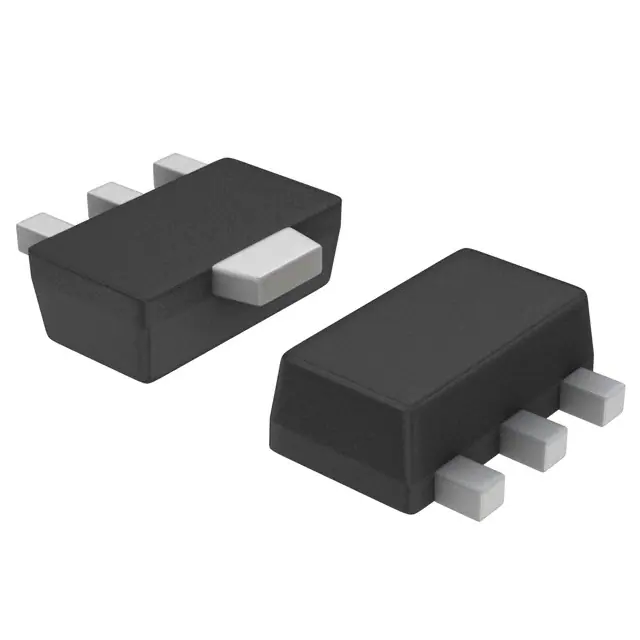

| Supplier Device Package | SOT-89/PCP-2 | SOT-89/PCP-1 | SOT-89/PCP-1 | SOT-89/PCP-1 |
| Package / Case | TO-243AA | TO-243AA | TO-243AA | TO-243AA |
