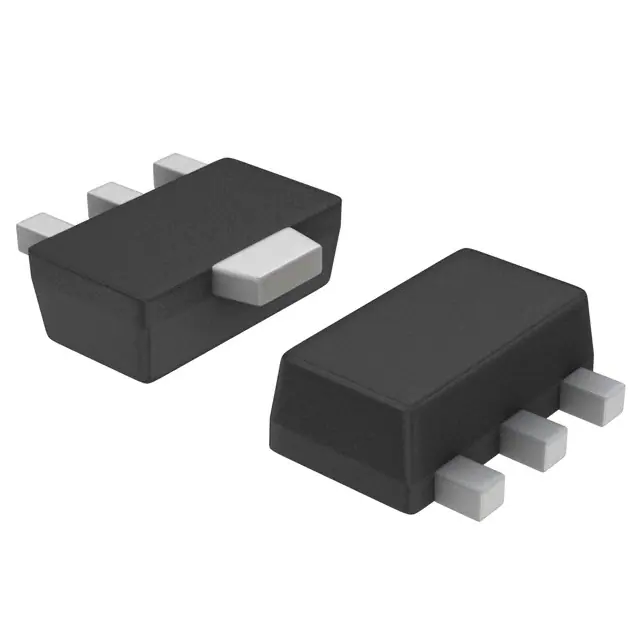

| Part Number | PCP1302-TD-H | PCP1402-TD-H |
|---|---|---|
| Manufacturer | onsemi | onsemi |
| Product Status | Obsolete | Obsolete |
| FET Type | P-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 60 V | 250 V |
| Current - Continuous Drain (Id) @ 25°C | 3A (Ta) | 1.2A (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 4V, 10V | 10V |
| Rds On (Max) @ Id, Vgs | 266mOhm @ 1.5A, 10V | 2.4Ohm @ 600mA, 10V |
| Vgs(th) (Max) @ Id | 2.6V @ 1mA | 3.5V @ 1mA |
| Gate Charge (Qg) (Max) @ Vgs | 6.4 nC @ 10 V | 4.2 nC @ 10 V |
| Vgs (Max) | ±20V | ±30V |
| Input Capacitance (Ciss) (Max) @ Vds | 262 pF @ 20 V | 210 pF @ 20 V |
| FET Feature | - | - |
| Power Dissipation (Max) | 3.5W (Tc) | 3.5W (Tc) |
| Operating Temperature | 150°C (TJ) | 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount |
| Supplier Device Package | SOT-89/PCP-1 | SOT-89/PCP-2 |
| Package / Case | TO-243AA | TO-243AA |
