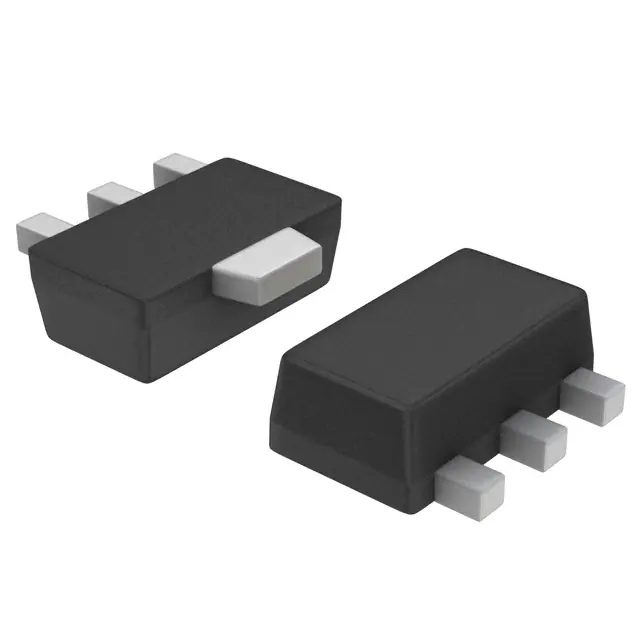

| Part Number | PCP1203-TD-H | PCP1208-TD-H | PCP1103-TD-H |
|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi |
| Product Status | Obsolete | Active | Active |
| Transistor Type | NPN | NPN | PNP |
| Current - Collector (Ic) (Max) | 1.5 A | 700 mA | 1.5 A |
| Voltage - Collector Emitter Breakdown (Max) | 30 V | 200 V | 30 V |
| Vce Saturation (Max) @ Ib, Ic | 225mV @ 15mA, 750mA | 200mV @ 35mA, 350mA | 375mV @ 15mA, 750mA |
| Current - Collector Cutoff (Max) | 100nA (ICBO) | 1µA (ICBO) | 100nA (ICBO) |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 200 @ 100mA, 2V | 200 @ 100mA, 5V | 200 @ 100mA, 2V |
| Power - Max | 1.3 W | 1.3 W | 3.5 W |
| Frequency - Transition | 500MHz | 120MHz | 450MHz |
| Operating Temperature | 150°C (TJ) | 150°C (TJ) | 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | TO-243AA | TO-243AA | TO-243AA |
| Supplier Device Package | PCP | PCP | PCP |
