Please send RFQ , we will respond immediately.

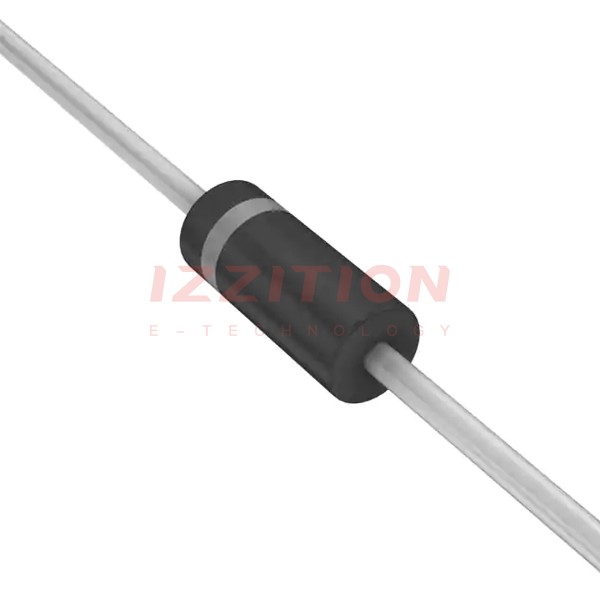

| Part Number | P6KE7.5ARL | P6KE7.5ARLG | P6KE75ARL |
|---|---|---|---|
| Manufacturer | onsemi | Littelfuse Inc. | onsemi |
| Product Status | Obsolete | Obsolete | Obsolete |
| Type | Zener | Zener | Zener |
| Unidirectional Channels | 1 | 1 | 1 |
| Bidirectional Channels | - | - | - |
| Voltage - Reverse Standoff (Typ) | 6.4V | 6.4V | 64.1V |
| Voltage - Breakdown (Min) | 7.13V | 7.13V | 71.3V |
| Voltage - Clamping (Max) @ Ipp | 11.3V | 11.3V | 103V |
| Current - Peak Pulse (10/1000µs) | 53A (8/20µs) | 53A (8/20µs) | 5.8A (8/20µs) |
| Power - Peak Pulse | 600W | 600W | 600W |
| Power Line Protection | No | No | No |
| Applications | General Purpose | General Purpose | General Purpose |
| Capacitance @ Frequency | - | - | - |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Package / Case | T-18, Axial | T-18, Axial | T-18, Axial |
| Supplier Device Package | Axial | Axial | Axial |
