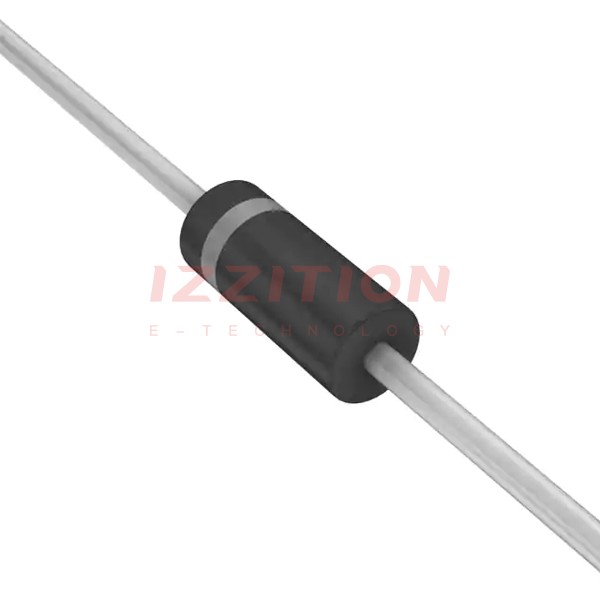

| Part Number | P6KE51ARL | P6KE51ARLG | P6KE51CARL | P6KE56ARL |
|---|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi | onsemi |
| Product Status | Obsolete | Active | Active | Obsolete |
| Type | Zener | Zener | - | Zener |
| Unidirectional Channels | 1 | 1 | - | 1 |
| Bidirectional Channels | - | - | - | - |
| Voltage - Reverse Standoff (Typ) | 43.6V | 43.6V | - | 47.8V |
| Voltage - Breakdown (Min) | 48.5V | 48.5V | - | 53.2V |
| Voltage - Clamping (Max) @ Ipp | 70.1V | 70.1V | - | 77V |
| Current - Peak Pulse (10/1000µs) | 8.6A (8/20µs) | 8.6A (8/20µs) | - | 7.8A (8/20µs) |
| Power - Peak Pulse | 600W | 600W | - | 600W |
| Power Line Protection | No | No | - | No |
| Applications | General Purpose | General Purpose | - | General Purpose |
| Capacitance @ Frequency | - | - | - | - |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | - | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole | Through Hole | - | Through Hole |
| Package / Case | T-18, Axial | T-18, Axial | - | T-18, Axial |
| Supplier Device Package | Axial | Axial | - | Axial |
