Please send RFQ , we will respond immediately.

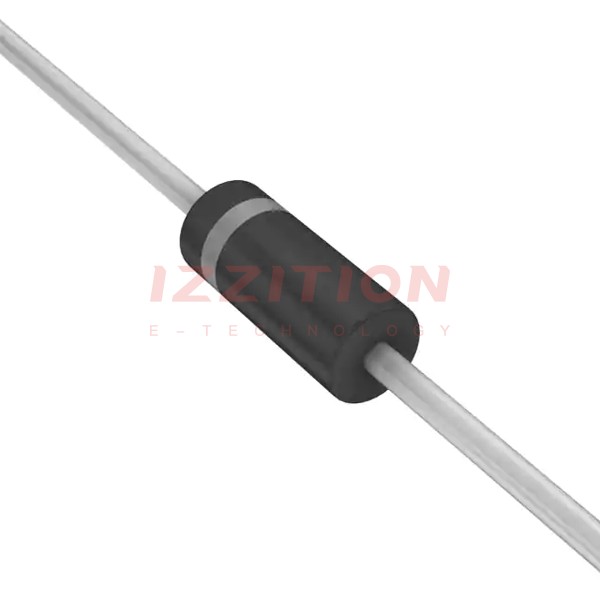

| Part Number | P6KE43ARL | P6KE43ARLG | P6KE47ARL |
|---|---|---|---|
| Manufacturer | onsemi | Littelfuse Inc. | onsemi |
| Product Status | Obsolete | Obsolete | Obsolete |
| Type | Zener | Zener | Zener |
| Unidirectional Channels | 1 | 1 | 1 |
| Bidirectional Channels | - | - | - |
| Voltage - Reverse Standoff (Typ) | 36.8V | 36.8V | 40.2V |
| Voltage - Breakdown (Min) | 40.9V | 40.9V | 44.7V |
| Voltage - Clamping (Max) @ Ipp | 59.3V | 59.3V | 64.8V |
| Current - Peak Pulse (10/1000µs) | 10.1A (8/20µs) | 10.1A (8/20µs) | 9.3A (8/20µs) |
| Power - Peak Pulse | 600W | 600W | 600W |
| Power Line Protection | No | No | No |
| Applications | General Purpose | General Purpose | General Purpose |
| Capacitance @ Frequency | - | - | - |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Package / Case | T-18, Axial | T-18, Axial | T-18, Axial |
| Supplier Device Package | Axial | Axial | Axial |
