onsemi-P4SMA18A_D84Z - TVS - Diodes Product Specifications and Latest Quotes

Type:	Zener
Unidirectional Channels:	1
Bidirectional Channels:	-
Voltage - Reverse Standoff (Typ):	15.3V
Voltage - Breakdown (Min):	17.1V
Voltage - Clamping (Max) @ Ipp:	25.2V
Current - Peak Pulse (10/1000µs):	15.9A
Power - Peak Pulse:	400W
Power Line Protection:	No
Applications:	General Purpose
Capacitance @ Frequency:	-
Operating Temperature:	-65°C ~ 150°C (TJ)
Mounting Type:	Surface Mount
Package / Case:	DO-214AC, SMA
Supplier Device Package:	DO-214AC (SMA)

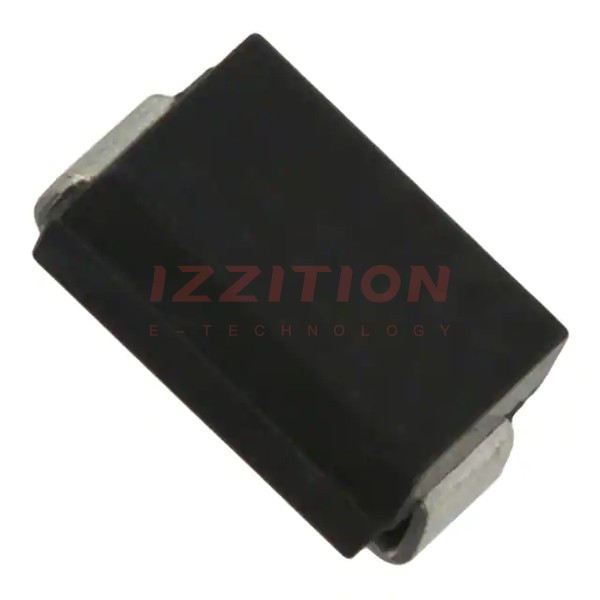

onsemi P4SMA18A_D84Z
