| Part Number | NZQA6V8XV5T1 | NZQA6V8XV5T1G | NZQA6V8XV5T2 | NZQA6V2XV5T1 | NZQA6V8AXV5T1 |
|---|---|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi | onsemi | onsemi |
| Product Status | Obsolete | Active | Obsolete | Obsolete | Obsolete |
| Type | Zener | Zener | Zener | Zener | Zener |
| Unidirectional Channels | 4 | 4 | 4 | 4 | 4 |
| Bidirectional Channels | - | - | - | - | - |
| Voltage - Reverse Standoff (Typ) | 4.3V | 4.3V | 4.3V | 4V | 4.3V |
| Voltage - Breakdown (Min) | 6.46V | 6.46V | 6.46V | 5.89V | 6.47V |
| Voltage - Clamping (Max) @ Ipp | 12.5V | 12.5V | 12.5V | 11.5V | 13V |
| Current - Peak Pulse (10/1000µs) | 8A (8/20µs) | 8A (8/20µs) | 8A (8/20µs) | 9A (8/20µs) | 1.6A (8/20µs) |
| Power - Peak Pulse | 100W | 100W | 100W | 100W | 20W |
| Power Line Protection | No | No | No | No | No |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Capacitance @ Frequency | 70pF @ 1MHz | 70pF @ 1MHz | 70pF @ 1MHz | 80pF @ 1MHz | 12pF @ 1MHz |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |

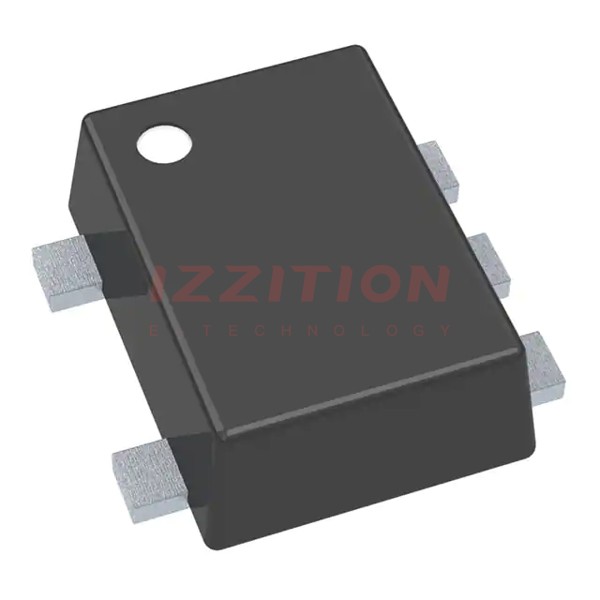

| Package / Case | SOT-553 | SOT-553 | SOT-553 | SOT-553 | SOT-553 |
| Supplier Device Package | SOT-553 | SOT-553 | SOT-553 | SOT-553 | SOT-553 |
