Please send RFQ , we will respond immediately.

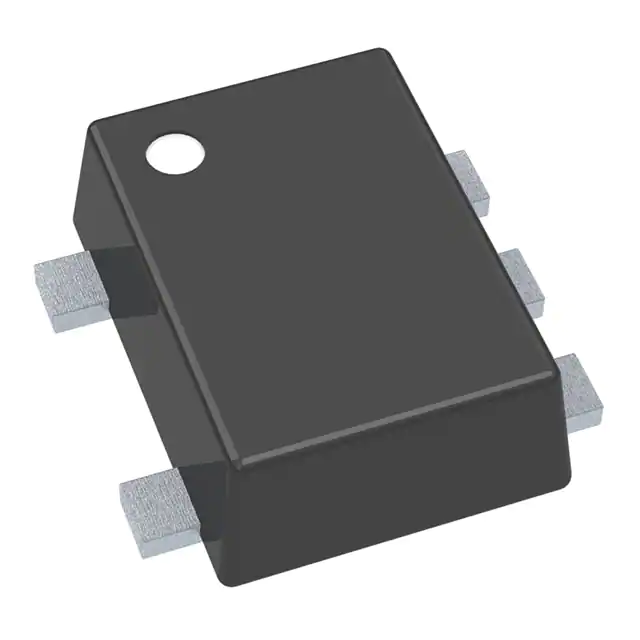

| Part Number | NZQA5V6XV5T1G | NZQA5V6XV5T3G | NZQA5V6AXV5T1G | NZQA5V6XV5T1 |
|---|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi | onsemi |
| Product Status | Active | Obsolete | Active | Obsolete |
| Type | Zener | Zener | Zener | Zener |
| Unidirectional Channels | 4 | 4 | 4 | 4 |
| Bidirectional Channels | - | - | - | - |
| Voltage - Reverse Standoff (Typ) | 3V | 3V | 3V | 3V |
| Voltage - Breakdown (Min) | 5.32V | 5.32V | 5.3V | 5.32V |
| Voltage - Clamping (Max) @ Ipp | 10.5V | 10.5V | 13V | 10.5V |
| Current - Peak Pulse (10/1000µs) | 10A (8/20µs) | 10A (8/20µs) | 1.6A (8/20µs) | 10A (8/20µs) |
| Power - Peak Pulse | 100W | 100W | 20W | 100W |
| Power Line Protection | No | No | No | No |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose |
| Capacitance @ Frequency | 90pF @ 1MHz | 90pF @ 1MHz | 13pF @ 1MHz | 90pF @ 1MHz |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | SOT-553 | SOT-553 | SOT-553 | SOT-553 |
| Supplier Device Package | SOT-553 | SOT-553 | SOT-553 | SOT-553 |
