onsemi-NZMM7V0T4 - EMI/RFI Filters (LC, RC Networks) Product Specifications and Latest Quotes

Type:	Low Pass
Filter Order:	2nd
Technology:	RC (Pi)
Number of Channels:	9
Center / Cutoff Frequency:	220MHz (Cutoff)
Attenuation Value:	-
Resistance - Channel (Ohms):	110
Current:	-
Values:	R = 110Ohms, C = 22pF
ESD Protection:	Yes
Operating Temperature:	-
Applications:	Data Lines for Mobile Devices
Voltage - Rated:	-
Mounting Type:	Surface Mount
Package / Case:	24-VFQFN Exposed Pad
Size / Dimension:	0.157" L x 0.157" W (4.00mm x 4.00mm)
Height:	0.039" (1.00mm)

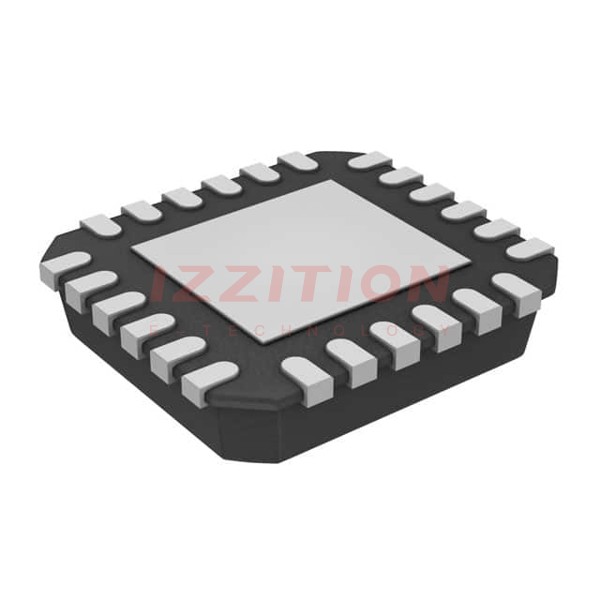

onsemi NZMM7V0T4
