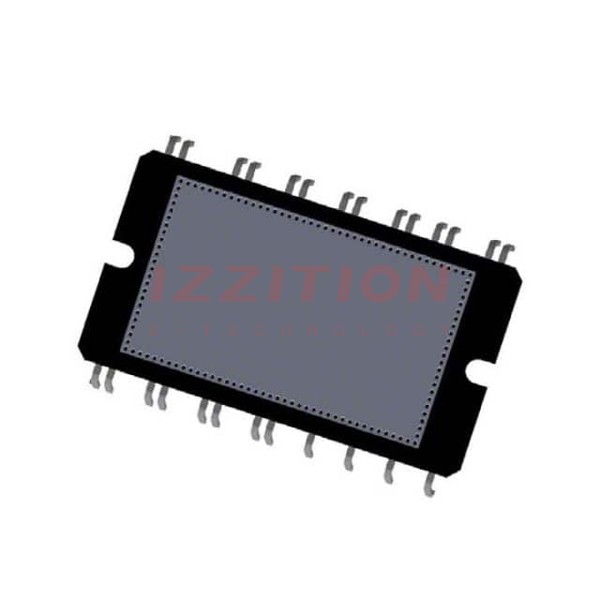

| Part Number | NXH35C120L2C2SG | NXH25C120L2C2SG | NXH35C120L2C2ESG | NXH35C120L2C2S1G |
|---|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi | onsemi |
| Product Status | Active | Active | Active | Active |
| IGBT Type | - | - | - | - |
| Configuration | Three Phase Inverter with Brake | Three Phase Inverter with Brake | Three Phase Inverter with Brake | Three Phase Inverter with Brake |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V | 1200 V | 1200 V | 1200 V |
| Current - Collector (Ic) (Max) | 35 A | 25 A | 35 A | 35 A |
| Power - Max | 20 mW | 20 mW | 20 mW | 20 mW |
| Vce(on) (Max) @ Vge, Ic | 2.4V @ 15V, 35A | 2.4V @ 15V, 25A | 2.4V @ 15V, 35A | 2.4V @ 15V, 35A |
| Current - Collector Cutoff (Max) | 250 µA | 250 µA | 250 µA | 250 µA |
| Input Capacitance (Cies) @ Vce | 8.33 nF @ 20 V | 6.2 nF @ 20 V | 8.333 nF @ 20 V | 8.33 nF @ 20 V |
| Input | Three Phase Bridge Rectifier | Three Phase Bridge Rectifier | Three Phase Bridge Rectifier | Three Phase Bridge Rectifier |
| NTC Thermistor | Yes | Yes | Yes | Yes |
| Operating Temperature | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | 26-PowerDIP Module (1.199", 47.20mm) | 26-PowerDIP Module (1.199", 47.20mm) | 26-PowerDIP Module (1.199", 47.20mm) | 26-PowerDIP Module (1.199", 47.20mm) |
| Supplier Device Package | 26-DIP | 26-DIP | 26-DIP | 26-DIP |
