| Part Number | NVTYS006N06CLTWG | NVTYS008N06CLTWG | NVTYS005N06CLTWG |
|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi |
| Product Status | Active | Active | Active |
| FET Type | N-Channel | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 60 V | 60 V | 60 V |
| Current - Continuous Drain (Id) @ 25°C | 16A (Ta), 71A (Tc) | 15A (Ta), 63A (Tc) | 18A (Ta), 89A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V | 4.5V, 10V | 4.5V, 10V |
| Rds On (Max) @ Id, Vgs | 6.8mOhm @ 35A, 10V | 8mOhm @ 9A, 10V | 5.3mOhm @ 50A, 10V |
| Vgs(th) (Max) @ Id | 2V @ 53µA | 2.2V @ 50µA | 2.2V @ 75µA |
| Gate Charge (Qg) (Max) @ Vgs | 19 nC @ 10 V | 17 nC @ 10 V | 25 nC @ 10 V |
| Vgs (Max) | ±20V | ±20V | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 1330 pF @ 25 V | 1230 pF @ 25 V | 1890 pF @ 25 V |
| FET Feature | - | - | - |
| Power Dissipation (Max) | 3.2W (Ta), 63W (Tc) | 3.2W (Ta), 56W (Tc) | 3.2W (Ta), 76W (Tc) |
| Operating Temperature | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |

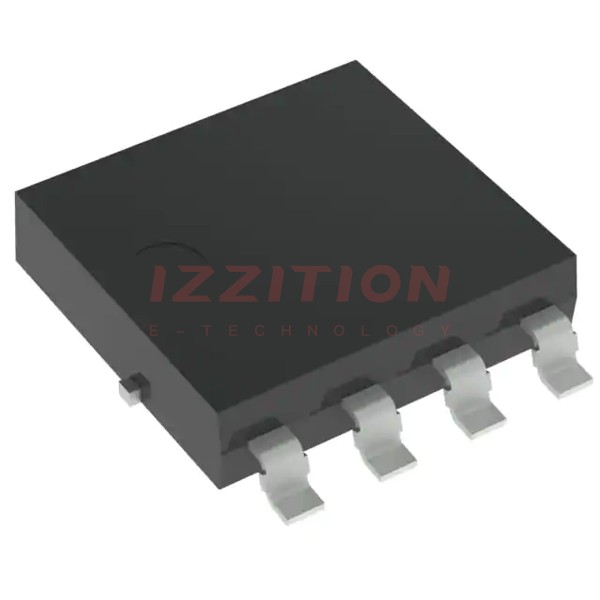

| Supplier Device Package | 8-LFPAK | 8-LFPAK | 8-LFPAK |
| Package / Case | SOT-1205, 8-LFPAK56 | SOT-1205, 8-LFPAK56 | SOT-1205, 8-LFPAK56 |
