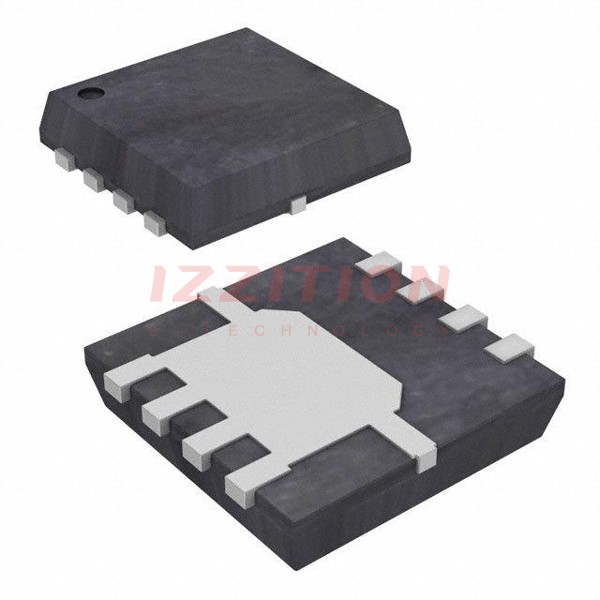

| Part Number | NVTFS6H888NLTAG | NVTFS6H888NTAG |
|---|---|---|
| Manufacturer | onsemi | onsemi |
| Product Status | Active | Active |
| FET Type | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 80 V | 80 V |
| Current - Continuous Drain (Id) @ 25°C | 4.9A (Ta), 14A (Tc) | 4.7A (Ta), 12A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V | 10V |
| Rds On (Max) @ Id, Vgs | 50mOhm @ 5A, 10V | 55mOhm @ 5A, 10V |
| Vgs(th) (Max) @ Id | 2V @ 15µA | 4V @ 15µA |
| Gate Charge (Qg) (Max) @ Vgs | 6 nC @ 10 V | 4.7 nC @ 10 V |
| Vgs (Max) | ±20V | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 258 pF @ 40 V | 220 pF @ 40 V |
| FET Feature | - | - |
| Power Dissipation (Max) | 2.9W (Ta), 23W (Tc) | 2.9W (Ta), 18W (Tc) |
| Operating Temperature | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount |
| Supplier Device Package | 8-WDFN (3.3x3.3) | 8-WDFN (3.3x3.3) |
| Package / Case | 8-PowerWDFN | 8-PowerWDFN |
