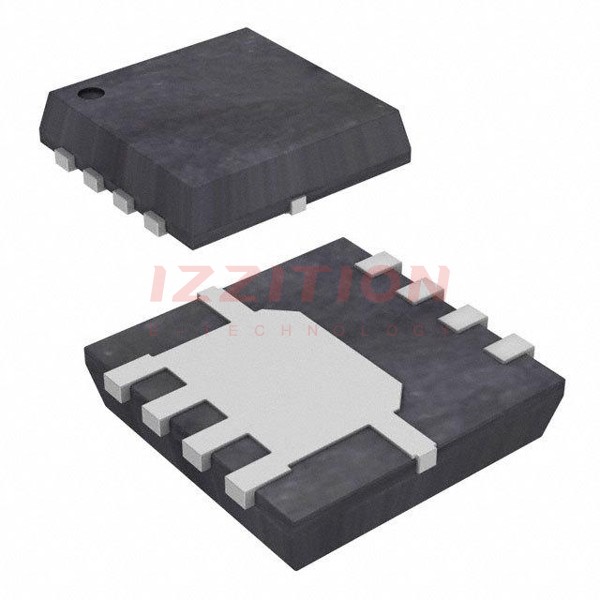

| Part Number | NVTFS5C673NLWFTAG | NVTFS5C670NLWFTAG |
|---|---|---|
| Manufacturer | onsemi | onsemi |
| Product Status | Active | Active |
| FET Type | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 60 V | 60 V |
| Current - Continuous Drain (Id) @ 25°C | 13A (Ta), 50A (Tc) | 16A (Ta), 70A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V | 4.5V, 10V |
| Rds On (Max) @ Id, Vgs | 9.8mOhm @ 25A, 10V | 6.8mOhm @ 35A, 10V |
| Vgs(th) (Max) @ Id | 2V @ 250µA | 2V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 9.5 nC @ 10 V | 20 nC @ 10 V |
| Vgs (Max) | ±20V | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 880 pF @ 25 V | 1400 pF @ 25 V |
| FET Feature | - | - |
| Power Dissipation (Max) | 3.1W (Ta), 46W (Tc) | 3.2W (Ta), 63W (Tc) |
| Operating Temperature | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount |
| Supplier Device Package | 8-WDFN (3.3x3.3) | 8-WDFN (3.3x3.3) |
| Package / Case | 8-PowerWDFN | 8-PowerWDFN |
