onsemi-NVTFS5C658NLWFTAG - Transistors - FETs, MOSFETs - Single Product Specifications and Latest Quotes

FET Type:	N-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	60 V
Current - Continuous Drain (Id) @ 25°C:	109A (Tc)
Drive Voltage (Max Rds On, Min Rds On):	4.5V, 10V
Rds On (Max) @ Id, Vgs:	5mOhm @ 50A, 10V
Vgs(th) (Max) @ Id:	2.2V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:	12 nC @ 4.5 V
Vgs (Max):	±20V
Input Capacitance (Ciss) (Max) @ Vds:	1935 pF @ 25 V
FET Feature:	-
Power Dissipation (Max):	114W (Tc)
Operating Temperature:	-55°C ~ 175°C (TJ)
Mounting Type:	Surface Mount
Supplier Device Package:	8-WDFN (3.3x3.3)
Package / Case:	8-PowerWDFN

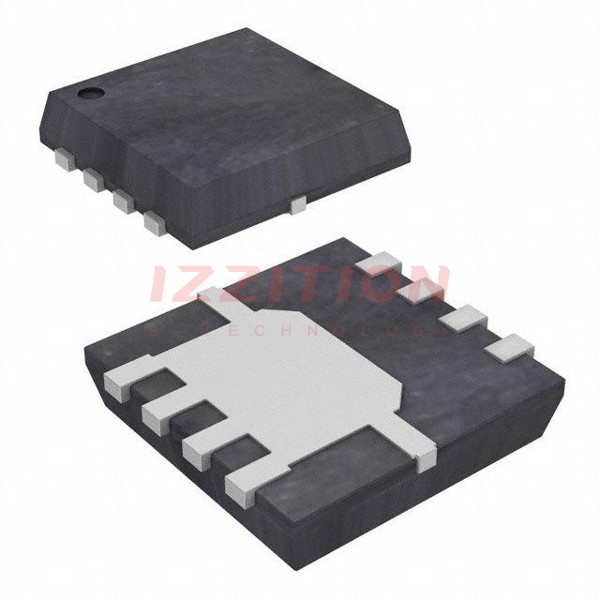

onsemi NVTFS5C658NLWFTAG
