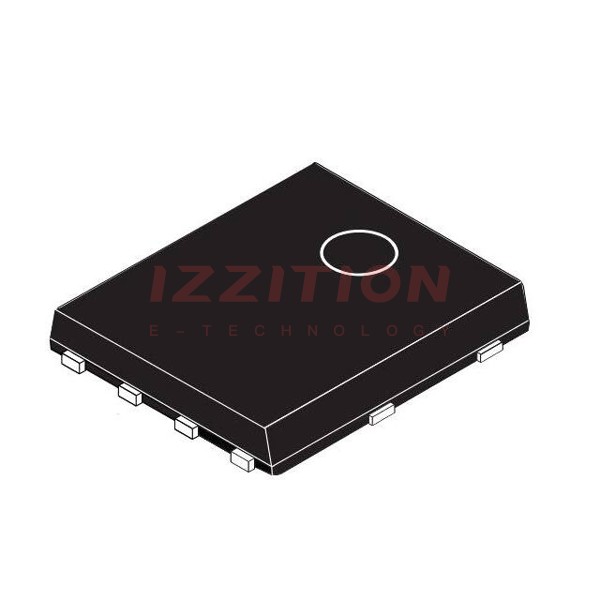

| Part Number | NVTFS5824NLTWG | NVTFS5826NLTWG | NVTFS5820NLTWG | NVTFS5824NLTAG |
|---|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi | Fairchild Semiconductor |
| Product Status | Active | Obsolete | Obsolete | Active |
| FET Type | N-Channel | - | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | - | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 60 V | - | 60 V | 60 V |
| Current - Continuous Drain (Id) @ 25°C | 37A (Tc) | - | 11A (Ta) | 37A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V | - | 4.5V, 10V | 4.5V, 10V |
| Rds On (Max) @ Id, Vgs | 20.5mOhm @ 10A, 10V | - | 11.5mOhm @ 8.7A, 10V | 20.5mOhm @ 10A, 10V |
| Vgs(th) (Max) @ Id | 2.5V @ 250µA | - | 2.3V @ 250µA | 2.5V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 16 nC @ 10 V | - | 28 nC @ 10 V | 16 nC @ 10 V |
| Vgs (Max) | ±20V | - | ±20V | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 850 pF @ 25 V | - | 1462 pF @ 25 V | 850 pF @ 25 V |
| FET Feature | - | - | - | - |
| Power Dissipation (Max) | 3.2W (Ta), 57W (Tc) | - | 3.2W (Ta), 21W (Tc) | 3.2W (Ta), 57W (Tc) |
| Operating Temperature | -55°C ~ 175°C (TJ) | - | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount | - | Surface Mount | Surface Mount |
| Supplier Device Package | 8-WDFN (3.3x3.3) | - | 8-WDFN (3.3x3.3) | 8-WDFN (3.3x3.3) |
| Package / Case | 8-PowerWDFN | - | 8-PowerWDFN | 8-PowerWDFN |
