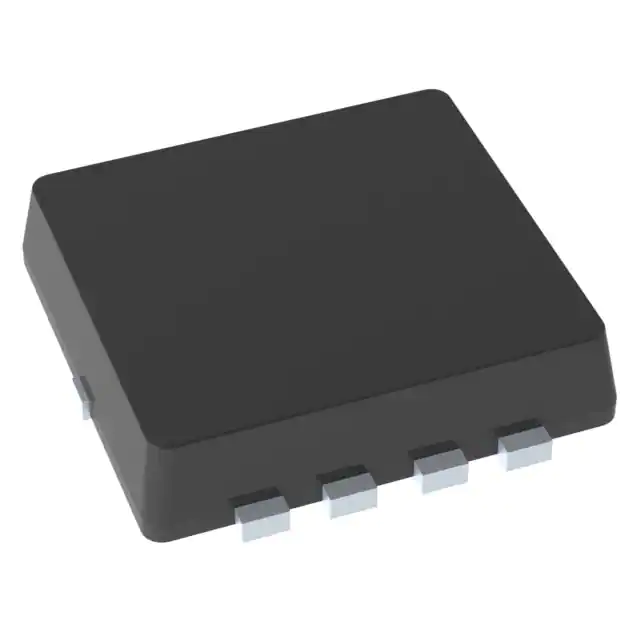

| Part Number | NVTFS010N10MCLTAG | NVTFWS010N10MCLTAG |
|---|---|---|
| Manufacturer | onsemi | onsemi |
| Product Status | Active | Active |
| FET Type | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 100 V | 100 V |
| Current - Continuous Drain (Id) @ 25°C | 11.7A (Ta), 57.8 (Tc) | 11.7A (Ta), 57.8A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V | 4.5V, 10V |
| Rds On (Max) @ Id, Vgs | 10.6mOhm @ 15A, 10V | 10.6mOhm @ 15A, 10V |
| Vgs(th) (Max) @ Id | 3V @ 85µA | 3V @ 85µA |
| Gate Charge (Qg) (Max) @ Vgs | 30 nC @ 10 V | 30 nC @ 10 V |
| Vgs (Max) | ±20V | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 2150 pF @ 50 V | 2150 pF @ 50 V |
| FET Feature | - | - |
| Power Dissipation (Max) | 3.2W (Ta), 77.8W (Tc) | 3.2W (Ta), 77.8W (Tc) |
| Operating Temperature | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount |
| Supplier Device Package | 8-WDFN (3.3x3.3) | 8-WDFN (3.3x3.3) |
| Package / Case | 8-PowerWDFN | 8-PowerWDFN |
