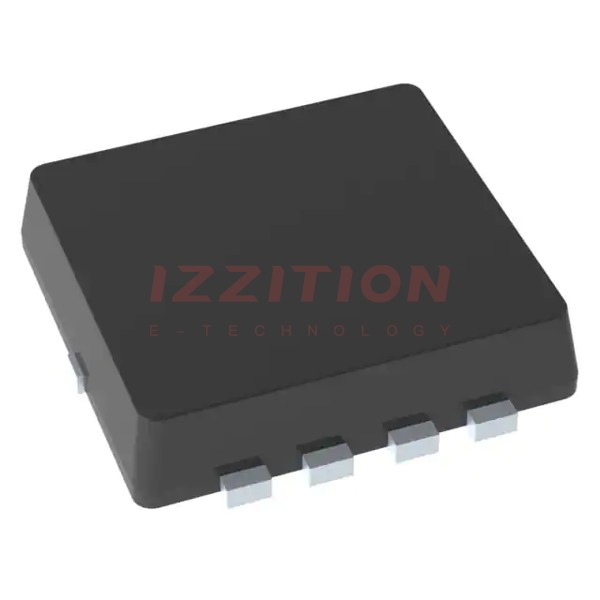

| Part Number | NVTFS002N04CLTAG | NVTFWS002N04CLTAG | NVTFS002N04CTAG |
|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi |
| Product Status | Active | Active | Active |
| FET Type | N-Channel | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 40 V | 40 V | 40 V |
| Current - Continuous Drain (Id) @ 25°C | 28A (Ta), 142A (Tc) | 28A (Ta), 142A (Tc) | 27A (Ta), 136A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V | 4.5V, 10V | 10V |
| Rds On (Max) @ Id, Vgs | 2.2mOhm @ 50A, 10V | 2.2mOhm @ 50A, 10V | 2.4mOhm @ 50A, 10V |
| Vgs(th) (Max) @ Id | 2V @ 90µA | 2V @ 90µA | 3.5V @ 90µA |
| Gate Charge (Qg) (Max) @ Vgs | 49 nC @ 10 V | 49 nC @ 10 V | 34 nC @ 10 V |
| Vgs (Max) | ±20V | ±20V | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 2940 pF @ 25 V | 2940 pF @ 25 V | 2250 pF @ 25 V |
| FET Feature | - | - | - |
| Power Dissipation (Max) | 3.2W (Ta), 85W (Tc) | 3.2W (Ta), 85W (Tc) | 3.2W (Ta), 85W (Tc) |
| Operating Temperature | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | 8-WDFN (3.3x3.3) | 8-WDFN (3.3x3.3) | 8-WDFN (3.3x3.3) |
| Package / Case | 8-PowerWDFN | 8-PowerWDFN | 8-PowerWDFN |
