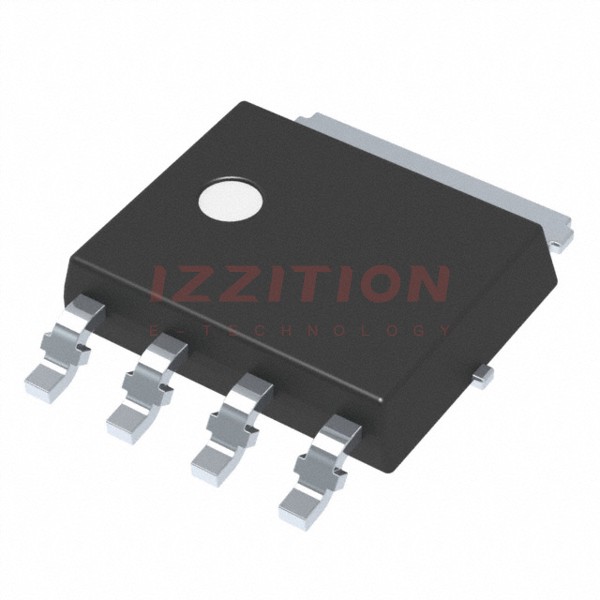

| Part Number | NVMYS1D3N04CTWG | NVMYS5D3N04CTWG | NVMJS1D3N04CTWG |
|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi |
| Product Status | Active | Active | Active |
| FET Type | N-Channel | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 40 V | 40 V | 40 V |
| Current - Continuous Drain (Id) @ 25°C | 43A (Ta), 252A (Tc) | 19A (Ta), 71A (Tc) | 41A (Ta), 235A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V | 10V | 10V |
| Rds On (Max) @ Id, Vgs | 1.15mOhm @ 50A, 10V | 5.3mOhm @ 35A, 10V | 1.3mOhm @ 50A, 10V |
| Vgs(th) (Max) @ Id | 3.5V @ 180µA | 3.5V @ 40µA | 3.5V @ 170µA |
| Gate Charge (Qg) (Max) @ Vgs | 75 nC @ 10 V | 16 nC @ 10 V | 65 nC @ 10 V |
| Vgs (Max) | ±20V | ±20V | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 4855 pF @ 25 V | 1000 pF @ 25 V | 4300 pF @ 25 V |
| FET Feature | - | - | - |
| Power Dissipation (Max) | 3.9W (Ta), 134W (Tc) | 3.6W (Ta), 50W (Tc) | 3.8W (Ta), 128W (Tc) |
| Operating Temperature | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | LFPAK4 (5x6) | LFPAK4 (5x6) | 8-LFPAK |
| Package / Case | SOT-1023, 4-LFPAK | SOT-1023, 4-LFPAK | SOT-1205, 8-LFPAK56 |
