Please send RFQ , we will respond immediately.

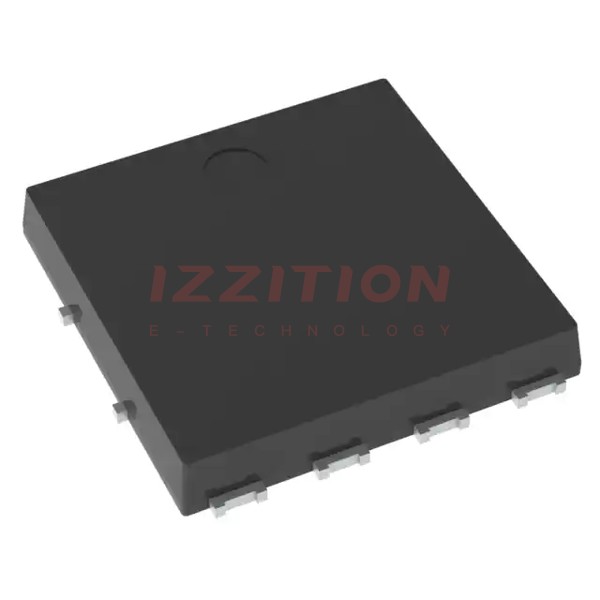

| Part Number | NVMTS0D4N04CLTXG | NVMTS0D4N04CTXG | NVMTS0D7N04CLTXG |
|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi |
| Product Status | Active | Active | Active |
| FET Type | N-Channel | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 40 V | 40 V | 40 V |
| Current - Continuous Drain (Id) @ 25°C | 553.8A (Tc) | 79.8A (Ta), 558A (Tc) | 67A (Ta), 433A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V | 10V | 4.5V, 10V |
| Rds On (Max) @ Id, Vgs | 0.4mOhm @ 50A, 10V | 0.45mOhm @ 50A, 10V | 0.63mOhm @ 50A, 10V |
| Vgs(th) (Max) @ Id | 2.5V @ 250µA | 4V @ 250µA | 2.5V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 163 nC @ 4.5 V | 251 nC @ 10 V | 205 nC @ 10 V |
| Vgs (Max) | ±20V | ±20V | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 20600 pF @ 20 V | 16500 pF @ 20 V | 12238 pF @ 25 V |
| FET Feature | - | - | - |
| Power Dissipation (Max) | 5W (Ta) | 5W | 2.5W (Ta), 205W (Tc) |
| Operating Temperature | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | 8-DFNW (8.3x8.4) | 8-DFNW (8.3x8.4) | 8-DFNW (8.3x8.4) |
| Package / Case | 8-PowerTDFN | 8-PowerTDFN | 8-PowerTDFN |
