onsemi-NVMJS2D5N06CLTWG - Transistors - FETs, MOSFETs - Single Product Specifications and Latest Quotes

FET Type:	N-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	60 V
Current - Continuous Drain (Id) @ 25°C:	31A (Ta), 164A (Tc)
Drive Voltage (Max Rds On, Min Rds On):	4.5V, 10V
Rds On (Max) @ Id, Vgs:	2.4mOhm @ 50A, 10V
Vgs(th) (Max) @ Id:	2V @ 135µA
Gate Charge (Qg) (Max) @ Vgs:	52 nC @ 10 V
Vgs (Max):	±20V
Input Capacitance (Ciss) (Max) @ Vds:	3600 pF @ 25 V
FET Feature:	-
Power Dissipation (Max):	3.9W (Ta), 113W (Tc)
Operating Temperature:	-55°C ~ 175°C (TJ)
Mounting Type:	Surface Mount
Supplier Device Package:	8-LFPAK
Package / Case:	SOT-1205, 8-LFPAK56

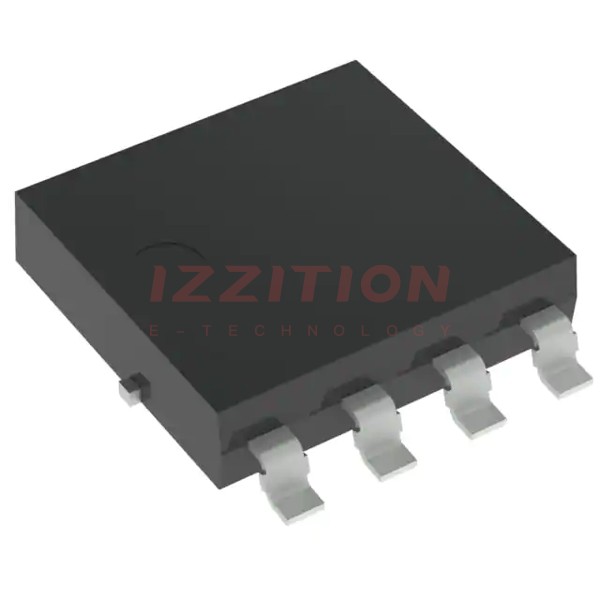

onsemi NVMJS2D5N06CLTWG
