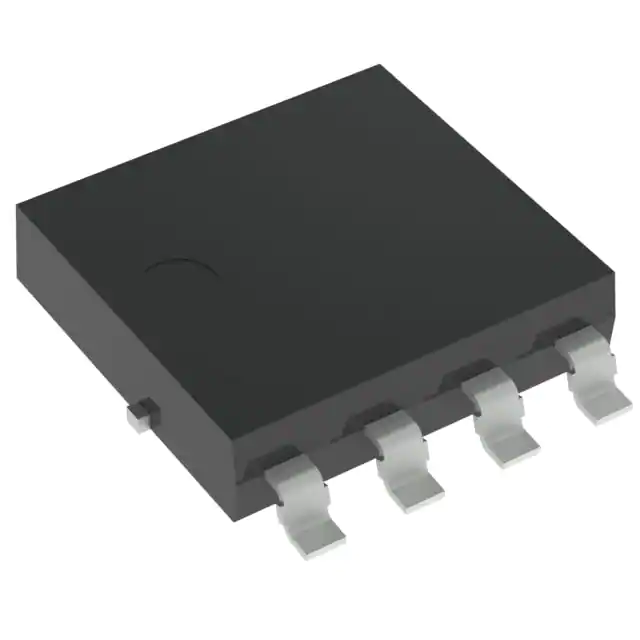

| Part Number | NVMJS1D5N04CLTWG | NVMJS1D2N04CLTWG |
|---|---|---|
| Manufacturer | onsemi | onsemi |
| Product Status | Active | Active |
| FET Type | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 40 V | 40 V |
| Current - Continuous Drain (Id) @ 25°C | 38A (Ta), 200A (Tc) | 41A (Ta), 237A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V | 4.5V, 10V |
| Rds On (Max) @ Id, Vgs | 1.4mOhm @ 50A, 10V | 1.2mOhm @ 50A, 10V |
| Vgs(th) (Max) @ Id | 2V @ 130µA | 2V @ 170µA |
| Gate Charge (Qg) (Max) @ Vgs | 70 nC @ 10 V | 93 nC @ 10 V |
| Vgs (Max) | ±20V | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 4300 pF @ 20 V | 5600 pF @ 25 V |
| FET Feature | - | - |
| Power Dissipation (Max) | 3.8W (Ta), 110W (Tc) | 3.8W (Ta), 128W (Tc) |
| Operating Temperature | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount |
| Supplier Device Package | 8-LFPAK | 8-LFPAK |
| Package / Case | SOT-1205, 8-LFPAK56 | SOT-1205, 8-LFPAK56 |
