Please send RFQ , we will respond immediately.

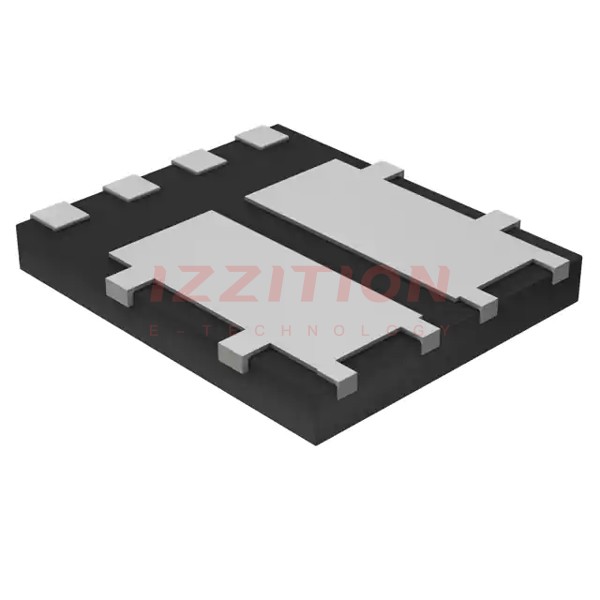

| Part Number | NVMFD5C672NLWFT1G | NVMFD5C674NLWFT1G |
|---|---|---|
| Manufacturer | onsemi | onsemi |
| Product Status | Active | Active |
| FET Type | 2 N-Channel (Dual) | 2 N-Channel (Dual) |
| FET Feature | Standard | Standard |
| Drain to Source Voltage (Vdss) | 60V | 60V |
| Current - Continuous Drain (Id) @ 25°C | 12A (Ta), 49A (Tc) | 11A (Ta), 42A (Tc) |
| Rds On (Max) @ Id, Vgs | 11.9mOhm @ 10A, 10V | 14.4mOhm @ 10A, 10V |
| Vgs(th) (Max) @ Id | 2.2V @ 30µA | 2.2V @ 25µA |
| Gate Charge (Qg) (Max) @ Vgs | 5.7nC @ 4.5V | 4.7nC @ 4.5V |
| Input Capacitance (Ciss) (Max) @ Vds | 793pF @ 25V | 640pF @ 25V |
| Power - Max | 3.1W (Ta), 45W (Tc) | 3W (Ta), 37W (Tc) |
| Operating Temperature | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | 8-PowerTDFN | 8-PowerTDFN |
| Supplier Device Package | 8-DFN (5x6) Dual Flag (SO8FL-Dual) | 8-DFN (5x6) Dual Flag (SO8FL-Dual) |
