Please send RFQ , we will respond immediately.
| Part Number | NVMFD5877NLWFT3G | NVMFD5875NLWFT3G | NVMFD5877NLWFT1G |
|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi |
| Product Status | Obsolete | Obsolete | Obsolete |
| FET Type | 2 N-Channel (Dual) | 2 N-Channel (Dual) | 2 N-Channel (Dual) |
| FET Feature | Logic Level Gate | Logic Level Gate | Logic Level Gate |
| Drain to Source Voltage (Vdss) | 60V | 60V | 60V |
| Current - Continuous Drain (Id) @ 25°C | 6A | 7A | 6A |
| Rds On (Max) @ Id, Vgs | 39mOhm @ 7.5A, 10V | 33mOhm @ 7.5A, 10V | 39mOhm @ 7.5A, 10V |
| Vgs(th) (Max) @ Id | 3V @ 250µA | 3V @ 250µA | 3V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 20nC @ 10V | 20nC @ 10V | 20nC @ 10V |
| Input Capacitance (Ciss) (Max) @ Vds | 540pF @ 25V | 540pF @ 25V | 540pF @ 25V |
| Power - Max | 3.2W | 3.2W | 3.2W |
| Operating Temperature | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |

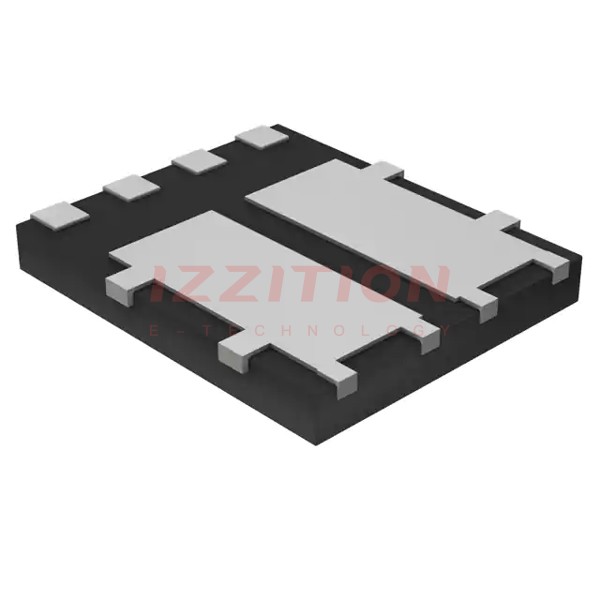

| Package / Case | 8-PowerTDFN | 8-PowerTDFN | 8-PowerTDFN |
| Supplier Device Package | 8-DFN (5x6) Dual Flag (SO8FL-Dual) | 8-DFN (5x6) Dual Flag (SO8FL-Dual) | 8-DFN (5x6) Dual Flag (SO8FL-Dual) |
