| Part Number | NVLJD4007NZTBG | NVLJD4007NZTAG |
|---|---|---|
| Manufacturer | onsemi | onsemi |
| Product Status | Active | Obsolete |
| FET Type | 2 N-Channel (Dual) | 2 N-Channel (Dual) |
| FET Feature | Logic Level Gate | Logic Level Gate |
| Drain to Source Voltage (Vdss) | 30V | 30V |
| Current - Continuous Drain (Id) @ 25°C | 245mA | 245mA |
| Rds On (Max) @ Id, Vgs | 7Ohm @ 125mA, 4.5V | 7Ohm @ 125mA, 4.5V |
| Vgs(th) (Max) @ Id | 1.5V @ 100µA | 1.5V @ 100µA |
| Gate Charge (Qg) (Max) @ Vgs | 0.75nC @ 4.5V | 0.75nC @ 4.5V |
| Input Capacitance (Ciss) (Max) @ Vds | 20pF @ 5V | 20pF @ 5V |
| Power - Max | 755mW | 755mW |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount |

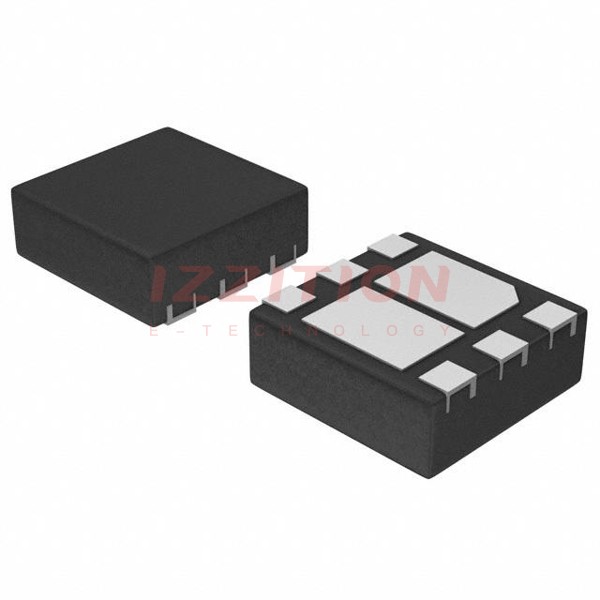

| Package / Case | 6-WDFN Exposed Pad | 6-WDFN Exposed Pad |
| Supplier Device Package | 6-WDFN (2x2) | 6-WDFN (2x2) |
