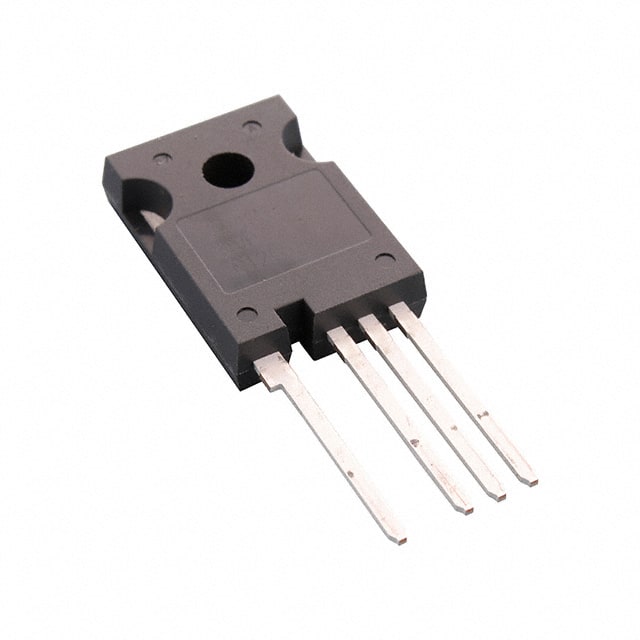

| Part Number | NVH4L020N090SC1 | NVHL020N090SC1 |
|---|---|---|
| Manufacturer | onsemi | onsemi |
| Product Status | Active | Active |
| FET Type | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | SiCFET (Silicon Carbide) |
| Drain to Source Voltage (Vdss) | 900 V | 900 V |
| Current - Continuous Drain (Id) @ 25°C | 116A (Tc) | 118A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 15V, 18V | 15V |
| Rds On (Max) @ Id, Vgs | 16mOhm @ 60A, 18V | 28mOhm @ 60A, 15V |
| Vgs(th) (Max) @ Id | 4.3V @ 20mA | 4.3V @ 20mA |
| Gate Charge (Qg) (Max) @ Vgs | 196 nC @ 15 V | 196 nC @ 15 V |
| Vgs (Max) | +22V, -8V | +19V, -10V |
| Input Capacitance (Ciss) (Max) @ Vds | 4415 pF @ 450 V | 4415 pF @ 450 V |
| FET Feature | - | - |
| Power Dissipation (Max) | 484W (Tc) | 503W (Tc) |
| Operating Temperature | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) |
| Mounting Type | Through Hole | Through Hole |
| Supplier Device Package | TO-247-4L | TO-247-3 |
| Package / Case | TO-247-4 | TO-247-3 |
