| Part Number | NVD6416ANLT4G-VF01 | NVD6416ANT4G-VF01 | NVD6415ANLT4G-VF01 |
|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi |
| Product Status | Active | Active | Obsolete |
| FET Type | N-Channel | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 100 V | 100 V | 100 V |
| Current - Continuous Drain (Id) @ 25°C | 19A (Tc) | 17A (Tc) | 23A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V | 10V | 4.5V, 10V |
| Rds On (Max) @ Id, Vgs | 74mOhm @ 19A, 10V | 81mOhm @ 17A, 10V | 52mOhm @ 10A, 10V |
| Vgs(th) (Max) @ Id | 2.2V @ 250µA | 4V @ 250µA | 2V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 40 nC @ 10 V | 20 nC @ 10 V | 20 nC @ 4.5 V |
| Vgs (Max) | ±20V | ±20V | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 1000 pF @ 25 V | 620 pF @ 25 V | 1024 pF @ 25 V |
| FET Feature | - | - | - |
| Power Dissipation (Max) | 71W (Tc) | 71W (Tc) | 83W (Tc) |
| Operating Temperature | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |

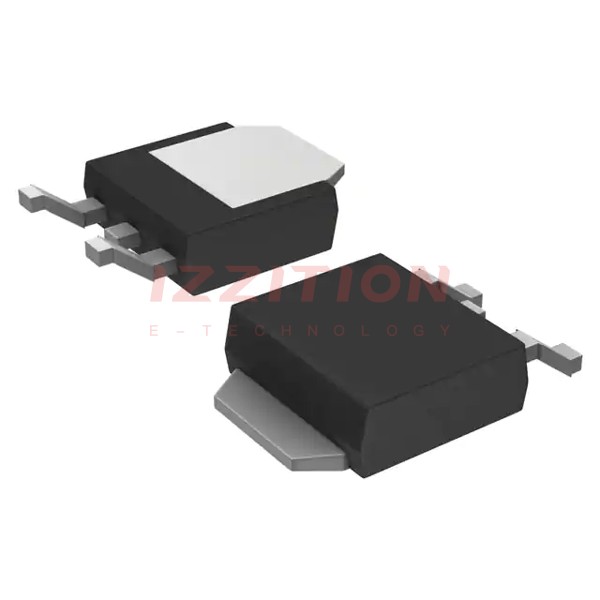

| Supplier Device Package | DPAK-3 | DPAK-3 | DPAK-3 |
| Package / Case | TO-252-3, DPak (2 Leads + Tab), SC-63 | TO-252-3, DPak (2 Leads + Tab), SC-63 | TO-252-3, DPak (2 Leads + Tab), SC-63 |
