onsemi-NVBLS0D7N06C - Transistors - FETs, MOSFETs - Single Product Specifications and Latest Quotes

FET Type:	N-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	60 V
Current - Continuous Drain (Id) @ 25°C:	54A (Ta), 470A (Tc)
Drive Voltage (Max Rds On, Min Rds On):	10V
Rds On (Max) @ Id, Vgs:	0.75mOhm @ 80A, 10V
Vgs(th) (Max) @ Id:	4V @ 661µA
Gate Charge (Qg) (Max) @ Vgs:	170 nC @ 10 V
Vgs (Max):	±20V
Input Capacitance (Ciss) (Max) @ Vds:	13730 pF @ 30 V
FET Feature:	-
Power Dissipation (Max):	4.2W (Ta), 314W (Tc)
Operating Temperature:	-55°C ~ 175°C (TJ)
Mounting Type:	Surface Mount
Supplier Device Package:	8-HPSOF
Package / Case:	8-PowerSFN

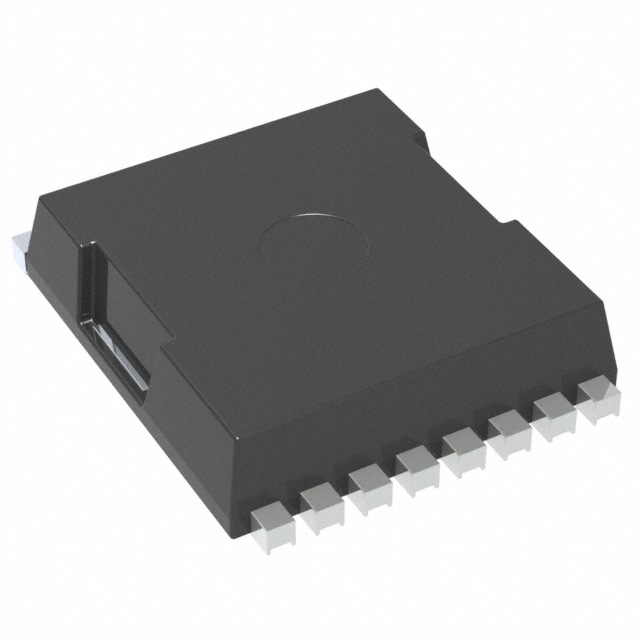

onsemi NVBLS0D7N06C
