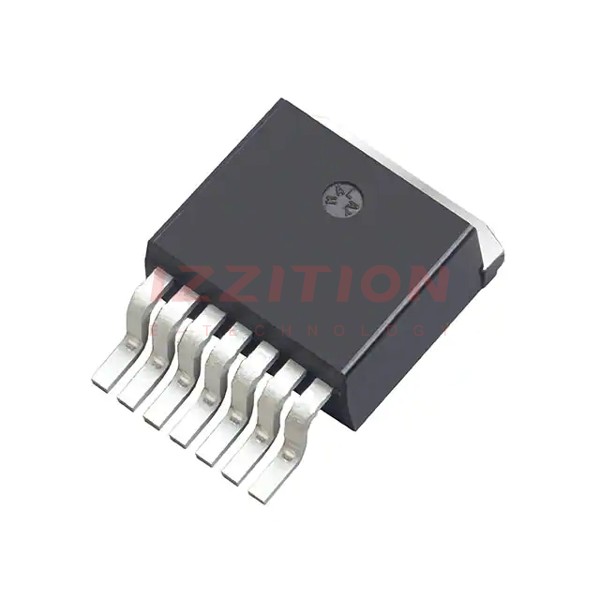

| Part Number | NVBG020N090SC1 | NVBG060N090SC1 |
|---|---|---|
| Manufacturer | onsemi | onsemi |
| Product Status | Active | Active |
| FET Type | N-Channel | N-Channel |
| Technology | SiCFET (Silicon Carbide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 900 V | 900 V |
| Current - Continuous Drain (Id) @ 25°C | 9.8A (Ta), 112A (Tc) | 5.8A (Ta), 44A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 15V | 15V |
| Rds On (Max) @ Id, Vgs | 28mOhm @ 60A, 15V | 84mOhm @ 20A, 15V |
| Vgs(th) (Max) @ Id | 4.3V @ 20mA | 4.3V @ 5mA |
| Gate Charge (Qg) (Max) @ Vgs | 200 nC @ 15 V | 88 nC @ 15 V |
| Vgs (Max) | +19V, -10V | +19V, -10V |
| Input Capacitance (Ciss) (Max) @ Vds | 4415 pF @ 450 V | 1800 pF @ 450 V |
| FET Feature | - | - |
| Power Dissipation (Max) | 3.7W (Ta), 477W (Tc) | 3.6W (Ta), 211W (Tc) |
| Operating Temperature | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount |
| Supplier Device Package | D2PAK-7 | D2PAK-7 |
| Package / Case | TO-263-8, D²Pak (7 Leads + Tab), TO-263CA | TO-263-8, D²Pak (7 Leads + Tab), TO-263CA |
