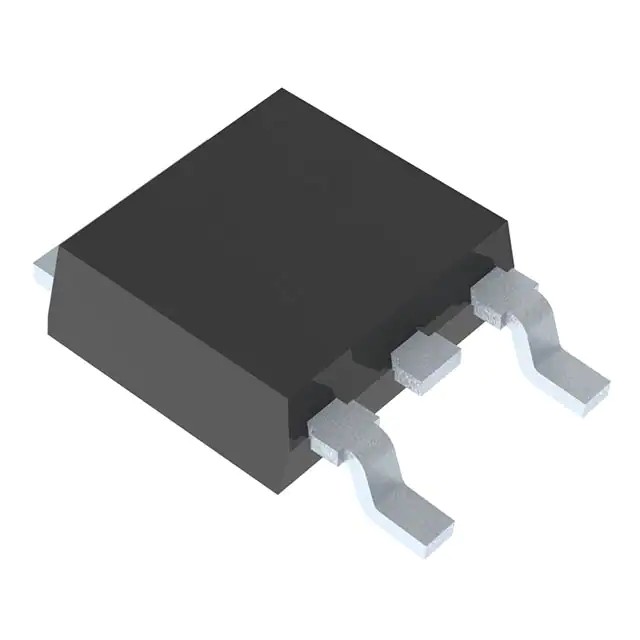

| Part Number | NVATS5A113PLZT4G | NVATS5A114PLZT4G | NVATS5A112PLZT4G |
|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi |
| Product Status | Obsolete | Active | Obsolete |
| FET Type | P-Channel | P-Channel | P-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 60 V | 60 V | 60 V |
| Current - Continuous Drain (Id) @ 25°C | 38A (Ta) | 60A (Ta) | 27A (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 4V, 10V | 4V, 10V | 4V, 10V |
| Rds On (Max) @ Id, Vgs | 29.5mOhm @ 18A, 10V | 16mOhm @ 28A, 10V | 43mOhm @ 13A, 10V |
| Vgs(th) (Max) @ Id | 2.6V @ 1mA | 2.6V @ 1mA | 2.6V @ 1mA |
| Gate Charge (Qg) (Max) @ Vgs | 55 nC @ 10 V | 92 nC @ 10 V | 33.5 nC @ 10 V |
| Vgs (Max) | ±20V | ±20V | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 2400 pF @ 20 V | 4000 pF @ 20 V | 1450 pF @ 20 V |
| FET Feature | - | - | - |
| Power Dissipation (Max) | 60W (Tc) | 72W (Tc) | 48W (Tc) |
| Operating Temperature | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | ATPAK | ATPAK | DPAK/ATPAK |
| Package / Case | TO-252-3, DPak (2 Leads + Tab), SC-63 | TO-252-3, DPak (2 Leads + Tab), SC-63 | TO-252-3, DPak (2 Leads + Tab), SC-63 |
