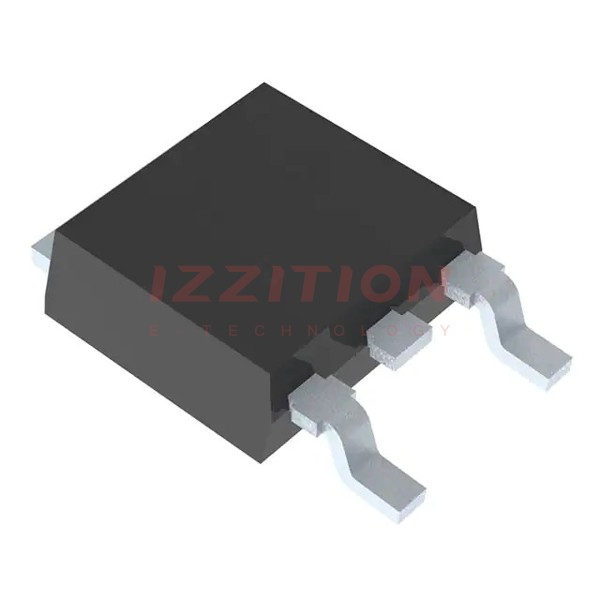

| Part Number | NVATS4A102PZT4G | NVATS4A103PZT4G | NVATS4A104PZT4G | NVATS4A101PZT4G |
|---|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi | onsemi |
| Product Status | Active | Active | Active | Active |
| FET Type | P-Channel | P-Channel | P-Channel | P-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 30 V | 30 V | 30 V | 30 V |
| Current - Continuous Drain (Id) @ 25°C | 44A (Ta) | 60A (Ta) | 82A (Ta) | 27A (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V | 4.5V, 10V | 4.5V, 10V | 4.5V, 10V |
| Rds On (Max) @ Id, Vgs | 18.5mOhm @ 20A, 10V | 13mOhm @ 28A, 10V | 8.4mOhm @ 38A, 10V | 30mOhm @ 13A, 10V |
| Vgs(th) (Max) @ Id | 2.6V @ 1mA | 2.6V @ 1mA | 2.6V @ 1mA | 2.6V @ 1mA |
| Gate Charge (Qg) (Max) @ Vgs | 34 nC @ 10 V | 47 nC @ 10 V | 76 nC @ 10 V | 18.5 nC @ 10 V |
| Vgs (Max) | ±20V | ±20V | ±20V | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 1490 pF @ 10 V | 2430 pF @ 10 V | 3950 pF @ 10 V | 875 pF @ 10 V |
| FET Feature | - | - | - | - |
| Power Dissipation (Max) | 48W (Tc) | 60W (Tc) | 72W (Tc) | 36W (Tc) |
| Operating Temperature | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | ATPAK | ATPAK | ATPAK | ATPAK |
| Package / Case | TO-252-3, DPak (2 Leads + Tab), SC-63 | TO-252-3, DPak (2 Leads + Tab), SC-63 | TO-252-3, DPak (2 Leads + Tab), SC-63 | TO-252-3, DPak (2 Leads + Tab), SC-63 |
