onsemi-NUP4212UPMUTAG - TVS - Diodes Product Specifications and Latest Quotes

Type:	Zener
Unidirectional Channels:	4
Bidirectional Channels:	-
Voltage - Reverse Standoff (Typ):	4V (Max)
Voltage - Breakdown (Min):	5.2V
Voltage - Clamping (Max) @ Ipp:	14.3V
Current - Peak Pulse (10/1000µs):	1A (8/20µs)
Power - Peak Pulse:	-
Power Line Protection:	Yes
Applications:	General Purpose
Capacitance @ Frequency:	0.7pF @ 1MHz
Operating Temperature:	-40°C ~ 125°C (TJ)
Mounting Type:	Surface Mount
Package / Case:	6-UFDFN Exposed Pad
Supplier Device Package:	6-UDFN (1.6x1.6)

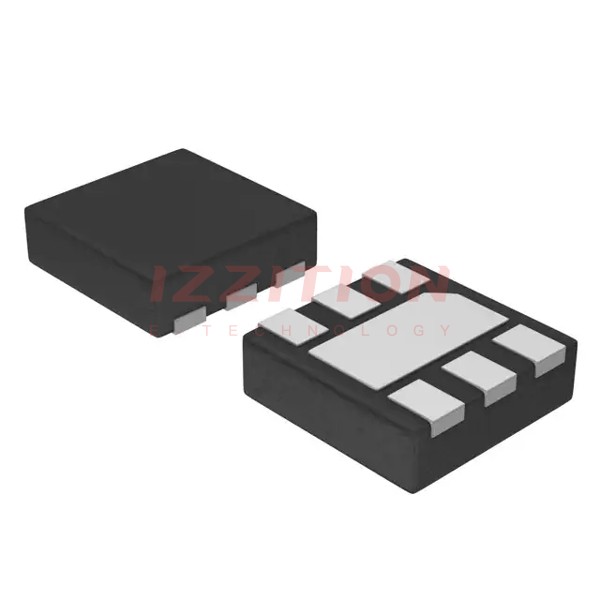

onsemi NUP4212UPMUTAG
