onsemi-NUF9001FCT1 - EMI/RFI Filters (LC, RC Networks) Product Specifications and Latest Quotes

Type:	Low Pass
Filter Order:	2nd
Technology:	RC (Pi)
Number of Channels:	10
Center / Cutoff Frequency:	100MHz (Cutoff)
Attenuation Value:	-35dB @ 800MHz ~ 3GHz
Resistance - Channel (Ohms):	200
Current:	-
Values:	R = 100Ohms, C = 45pF (Total)
ESD Protection:	Yes
Operating Temperature:	-40°C ~ 85°C
Applications:	Data Lines for Mobile Devices
Voltage - Rated:	-
Mounting Type:	Surface Mount
Package / Case:	25-UFBGA, FCBGA
Size / Dimension:	0.104" L x 0.104" W (2.65mm x 2.65mm)
Height:	0.026" (0.65mm)

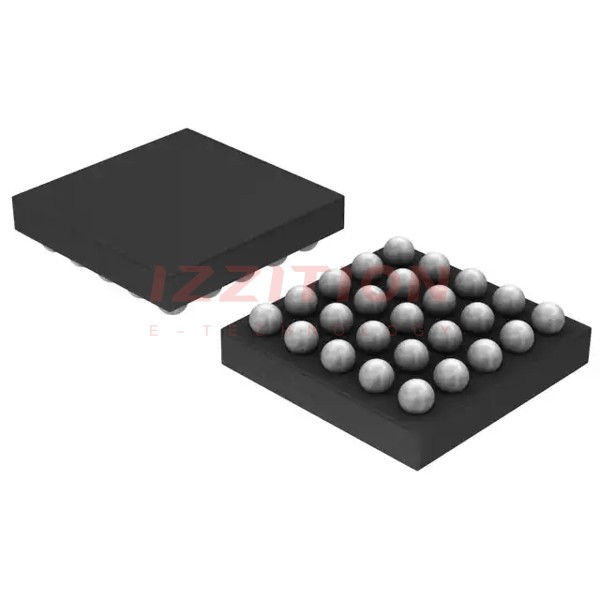

onsemi NUF9001FCT1
