onsemi-NUF8402MNT4G - EMI/RFI Filters (LC, RC Networks) Product Specifications and Latest Quotes

Type:	Low Pass
Filter Order:	2nd
Technology:	RC (Pi)
Number of Channels:	8
Center / Cutoff Frequency:	105MHz (Cutoff)
Attenuation Value:	-35dB @ 800MHz ~ 2.2GHz
Resistance - Channel (Ohms):	100
Current:	-
Values:	R = 100Ohms, C = 17pF
ESD Protection:	Yes
Operating Temperature:	-40°C ~ 85°C
Applications:	Data Lines for Mobile Devices
Voltage - Rated:	-
Mounting Type:	Surface Mount

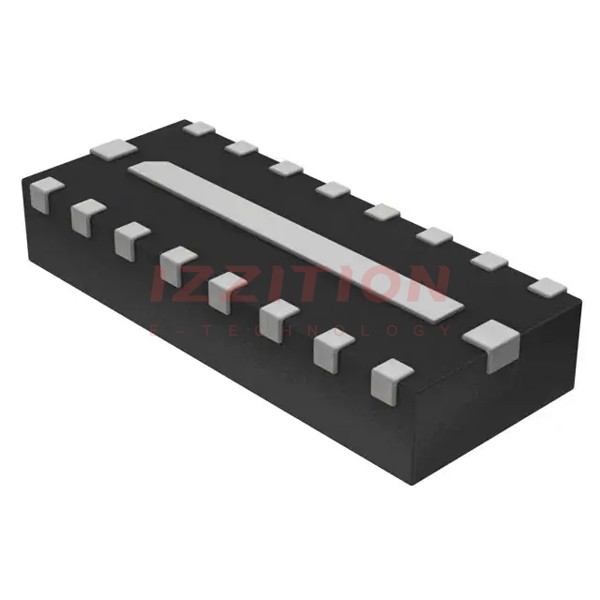

Package / Case:	16-VFDFN Exposed Pad
Size / Dimension:	0.157" L x 0.063" W (4.00mm x 1.60mm)
Height:	0.039" (1.00mm)

onsemi NUF8402MNT4G
