onsemi-NUF8000MUT2G - EMI/RFI Filters (LC, RC Networks) Product Specifications and Latest Quotes

Type:	Low Pass
Filter Order:	2nd
Technology:	RC (Pi)
Number of Channels:	8
Center / Cutoff Frequency:	95MHz (Cutoff)
Attenuation Value:	-30dB @ 800MHz ~ 5GHz
Resistance - Channel (Ohms):	100
Current:	-
Values:	R = 100Ohms, C = 15pF
ESD Protection:	Yes
Operating Temperature:	-40°C ~ 85°C
Applications:	Data Lines for Mobile Devices
Voltage - Rated:	-
Mounting Type:	Surface Mount
Package / Case:	16-UFDFN Exposed Pad
Size / Dimension:	0.138" L x 0.047" W (3.50mm x 1.20mm)
Height:	0.022" (0.55mm)

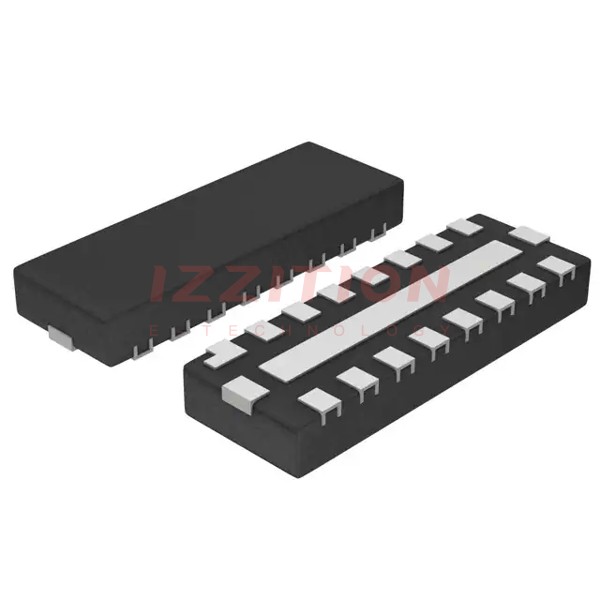

onsemi NUF8000MUT2G
