onsemi-NUF6410MNT1G - EMI/RFI Filters (LC, RC Networks) Product Specifications and Latest Quotes

Type:	Low Pass
Filter Order:	2nd
Technology:	RC (Pi)
Number of Channels:	6
Center / Cutoff Frequency:	250MHz (Cutoff)
Attenuation Value:	-20dB @ 800MHz ~ 3GHz
Resistance - Channel (Ohms):	100
Current:	-
Values:	R = 100Ohms, C = 7pF
ESD Protection:	Yes
Operating Temperature:	-40°C ~ 85°C
Applications:	Data Lines for Mobile Devices
Voltage - Rated:	-
Mounting Type:	Surface Mount
Package / Case:	12-VFDFN Exposed Pad
Size / Dimension:	0.118" L x 0.053" W (3.00mm x 1.35mm)
Height:	0.039" (1.00mm)

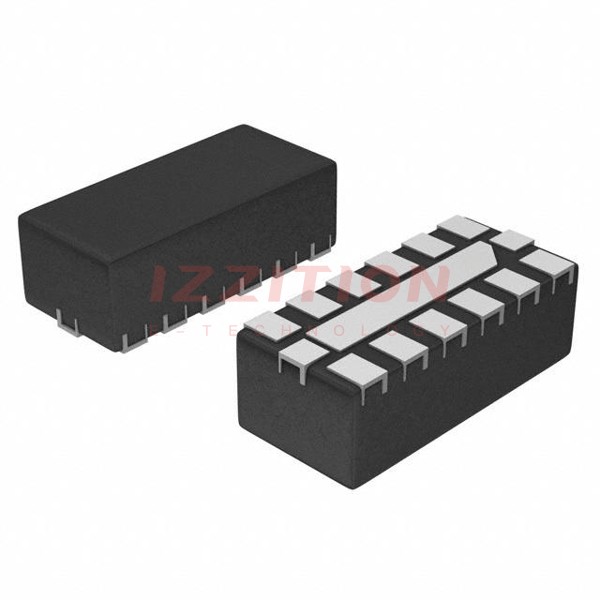

onsemi NUF6410MNT1G
