onsemi-NUF4310MNTAG - EMI/RFI Filters (LC, RC Networks) Product Specifications and Latest Quotes

Type:	Low Pass
Filter Order:	2nd
Technology:	RC (Pi)
Number of Channels:	4
Center / Cutoff Frequency:	185MHz (Cutoff)
Attenuation Value:	-25dB @ 800MHz ~ 4GHz
Resistance - Channel (Ohms):	100
Current:	-
Values:	R = 100Ohms, C = 9pF
ESD Protection:	Yes
Operating Temperature:	-40°C ~ 85°C
Applications:	Data Lines for Mobile Devices
Voltage - Rated:	-
Mounting Type:	Surface Mount
Package / Case:	8-WFDFN Exposed Pad
Size / Dimension:	0.063" L x 0.039" W (1.60mm x 1.00mm)
Height:	0.031" (0.79mm)

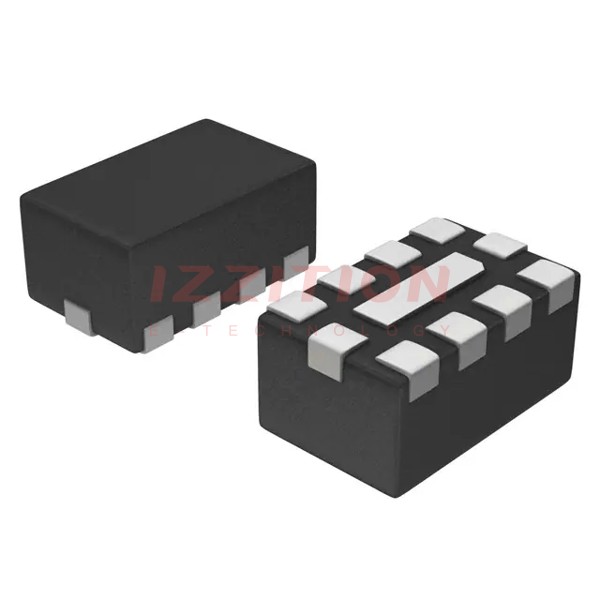

onsemi NUF4310MNTAG
