onsemi-NUF3101FCT1 - EMI/RFI Filters (LC, RC Networks) Product Specifications and Latest Quotes

Type:	Low Pass
Filter Order:	2nd
Technology:	RC (Pi)
Number of Channels:	3
Center / Cutoff Frequency:	300MHz (Cutoff)
Attenuation Value:	-25dB @ 800MHz ~ 2.2GHz
Resistance - Channel (Ohms):	47, 100
Current:	-
Values:	R = 47Ohms, 100Ohms, C = 40pF (Total)
ESD Protection:	Yes
Operating Temperature:	-40°C ~ 85°C
Applications:	Data Lines for Mobile Devices
Voltage - Rated:	-
Mounting Type:	Surface Mount

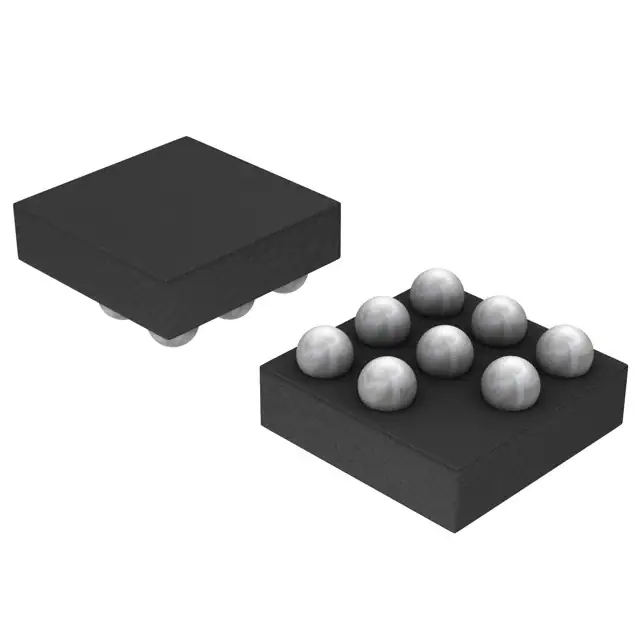

Package / Case:	8-WFBGA, FCBGA
Size / Dimension:	0.061" L x 0.061" W (1.55mm x 1.55mm)
Height:	0.028" (0.70mm)

onsemi NUF3101FCT1
