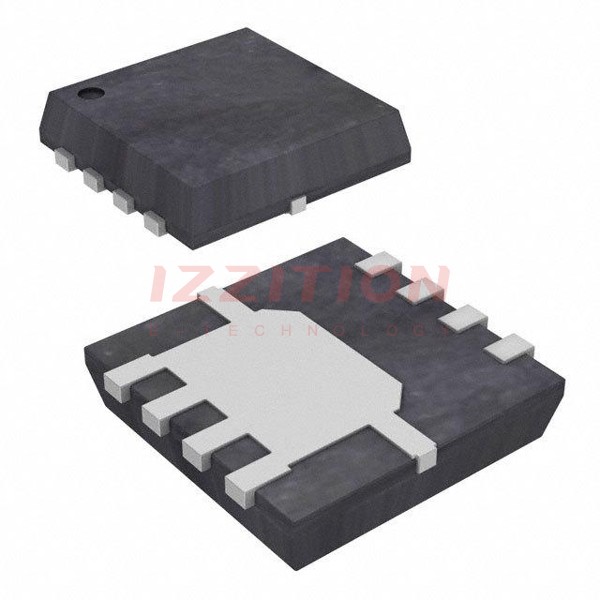

| Part Number | NTTFSC4823NTAG | NTTFS4823NTAG | NTTFSC4821NTAG |
|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi |
| Product Status | Obsolete | Obsolete | Obsolete |
| FET Type | - | N-Channel | - |
| Technology | - | MOSFET (Metal Oxide) | - |
| Drain to Source Voltage (Vdss) | - | 30 V | - |
| Current - Continuous Drain (Id) @ 25°C | - | 7.1A (Ta), 50A (Tc) | 13.5A (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | - | 4.5V, 11.5V | - |
| Rds On (Max) @ Id, Vgs | - | 10.5mOhm @ 20A, 10V | - |
| Vgs(th) (Max) @ Id | - | 2.5V @ 250µA | - |
| Gate Charge (Qg) (Max) @ Vgs | - | 9 nC @ 4.5 V | - |
| Vgs (Max) | - | ±20V | - |
| Input Capacitance (Ciss) (Max) @ Vds | - | 1013 pF @ 12 V | - |
| FET Feature | - | - | - |
| Power Dissipation (Max) | - | 660mW (Ta), 32.9W (Tc) | - |
| Operating Temperature | - | -55°C ~ 150°C (TJ) | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | 8-WDFN (3.3x3.3) | 8-WDFN (3.3x3.3) | 8-WDFN (3.3x3.3) |
| Package / Case | 8-PowerWDFN | 8-PowerWDFN | 8-PowerWDFN |
