| Part Number | NTTFS1D8N02P1E | NTTFS1D2N02P1E |
|---|---|---|
| Manufacturer | onsemi | onsemi |
| Product Status | Active | Active |
| FET Type | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 25 V | 25 V |
| Current - Continuous Drain (Id) @ 25°C | 20A (Ta), 152A (Tc) | 23A (Ta), 180A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V | 4.5V, 10V |
| Rds On (Max) @ Id, Vgs | 1.3mOhm @ 30A, 10V | 1mOhm @ 38A, 10V |
| Vgs(th) (Max) @ Id | 2V @ 700µA | 2V @ 934µA |
| Gate Charge (Qg) (Max) @ Vgs | 38 nC @ 10 V | 24 nC @ 4.5 V |
| Vgs (Max) | +16V, -12V | +16V, -12V |
| Input Capacitance (Ciss) (Max) @ Vds | 3159 pF @ 13 V | 4040 pF @ 13 V |
| FET Feature | - | - |
| Power Dissipation (Max) | 800mW (Ta), 48W (Tc) | 820mW (Ta), 52W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount |

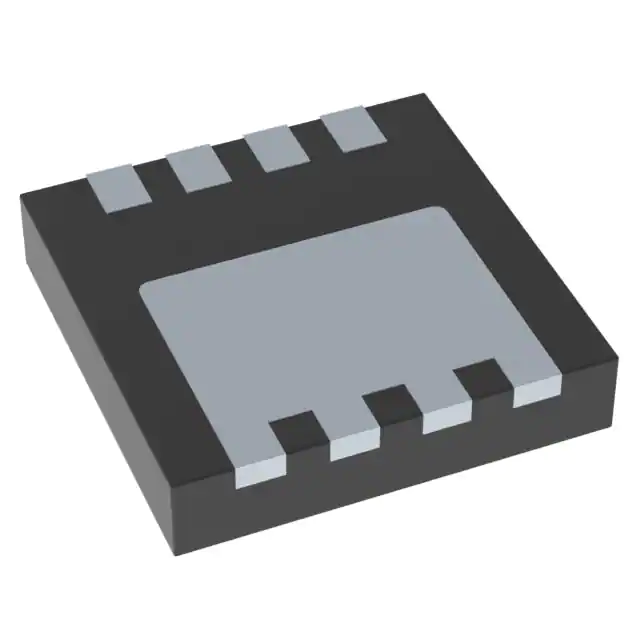

| Supplier Device Package | 8-PQFN (3.3x3.3) | 8-PQFN (3.3x3.3) |
| Package / Case | 8-PowerWDFN | 8-PowerWDFN |
