onsemi-NTTFD9D0N06HLTWG - Transistors - FETs, MOSFETs - Arrays Product Specifications and Latest Quotes

FET Type:	2 N-Channel (Dual)
FET Feature:	Standard
Drain to Source Voltage (Vdss):	60V
Current - Continuous Drain (Id) @ 25°C:	9A (Ta), 38A (Tc)
Rds On (Max) @ Id, Vgs:	9mOhm @ 10A, 10V
Vgs(th) (Max) @ Id:	2V @ 50µA
Gate Charge (Qg) (Max) @ Vgs:	13.5nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds:	948pF @ 30V
Power - Max:	1.7W (Ta), 26W (Tc)
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Surface Mount
Package / Case:	12-PowerWQFN
Supplier Device Package:	12-WQFN (3.3x3.3)

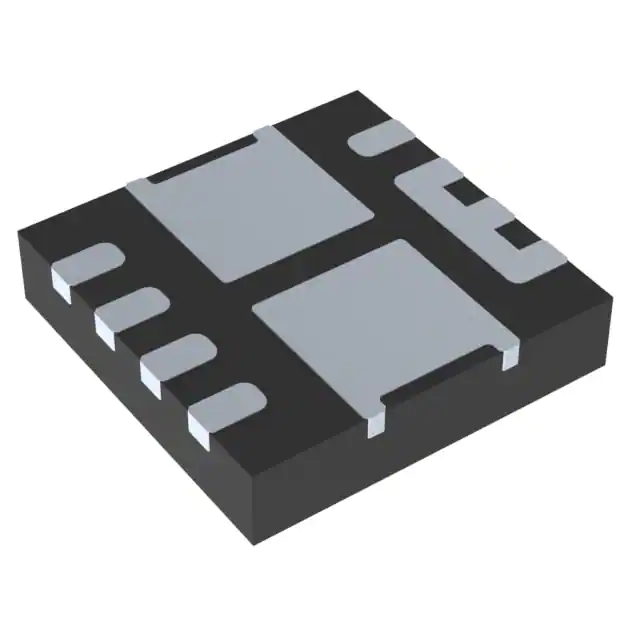

onsemi NTTFD9D0N06HLTWG
