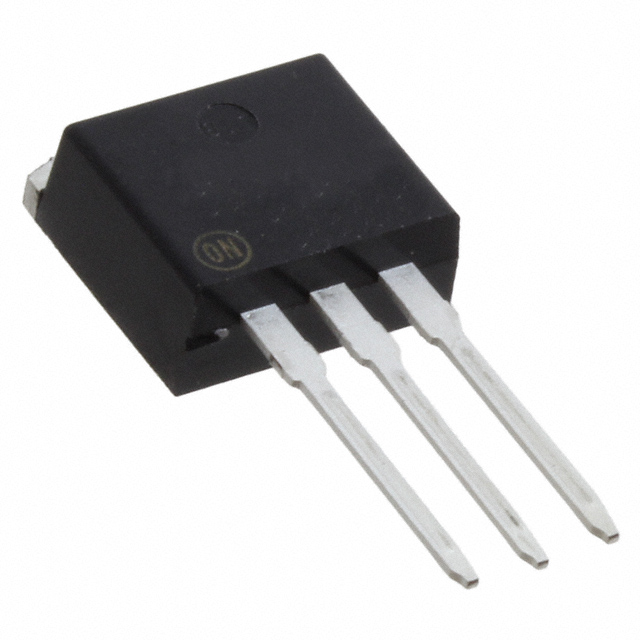

| Part Number | NTSB40120CT-1G | NTSB20120CT-1G | NTSB30120CT-1G | NTSB40100CT-1G |
|---|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi | onsemi |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete |
| Diode Configuration | 1 Pair Common Cathode | 1 Pair Common Cathode | 1 Pair Common Cathode | 1 Pair Common Cathode |
| Diode Type | Schottky | Schottky | Schottky | Schottky |
| Voltage - DC Reverse (Vr) (Max) | 120 V | 120 V | 120 V | 100 V |
| Current - Average Rectified (Io) (per Diode) | 20A | 10A | 15A | 20A |
| Voltage - Forward (Vf) (Max) @ If | 910 mV @ 20 A | 1.1 V @ 10 A | 1.08 V @ 15 A | 800 mV @ 20 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | - | - | - | - |
| Current - Reverse Leakage @ Vr | 500 µA @ 120 V | 700 µA @ 120 V | 800 µA @ 120 V | 12 µA @ 70 V |
| Operating Temperature - Junction | -40°C ~ 150°C | -40°C ~ 150°C | -40°C ~ 150°C | -40°C ~ 150°C |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | TO-262-3 Long Leads, I²Pak, TO-262AA | TO-262-3 Long Leads, I²Pak, TO-262AA | TO-262-3 Long Leads, I²Pak, TO-262AA | TO-262-3 Long Leads, I²Pak, TO-262AA |
| Supplier Device Package | I2PAK (TO-262) | I2PAK (TO-262) | I2PAK (TO-262) | I2PAK (TO-262) |
