onsemi-NTSB30100S-1G - Diodes - Rectifiers - Single Product Specifications and Latest Quotes

Diode Type:	Schottky
Voltage - DC Reverse (Vr) (Max):	100 V
Current - Average Rectified (Io):	30A
Voltage - Forward (Vf) (Max) @ If:	950 mV @ 30 A
Speed:	Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr):	-
Current - Reverse Leakage @ Vr:	1 mA @ 100 V
Capacitance @ Vr, F:	-
Mounting Type:	Through Hole

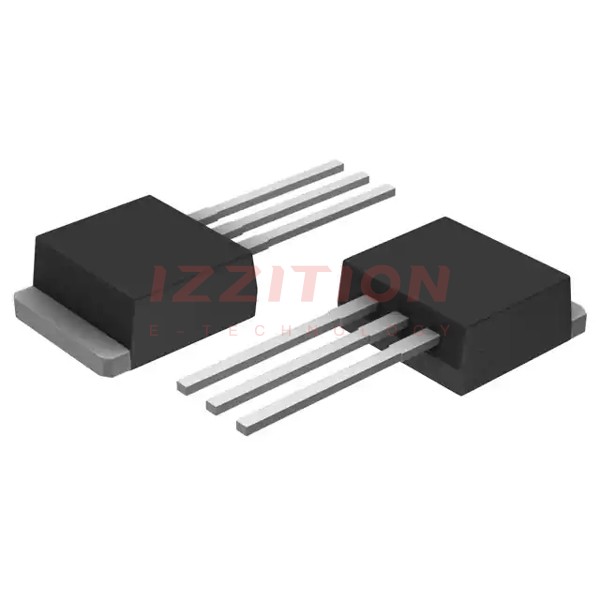

Package / Case:	TO-262-3 Long Leads, I²Pak, TO-262AA
Supplier Device Package:	I2PAK (TO-262)
Operating Temperature - Junction:	-40°C ~ 150°C

onsemi NTSB30100S-1G
