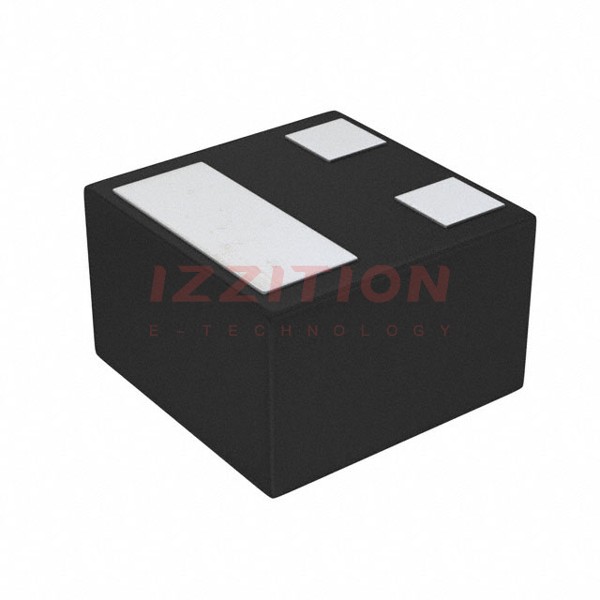

| Part Number | NTNS3190NZT5G | NTNS3193NZT5G |
|---|---|---|
| Manufacturer | onsemi | onsemi |
| Product Status | Active | Active |
| FET Type | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 20 V | 20 V |
| Current - Continuous Drain (Id) @ 25°C | 224mA (Ta) | 224mA (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 1.5V, 4.5V | 1.5V, 4.5V |
| Rds On (Max) @ Id, Vgs | 1.4Ohm @ 100mA, 4.5V | 1.4Ohm @ 100mA, 4.5V |
| Vgs(th) (Max) @ Id | 1V @ 250µA | 1V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 0.7 nC @ 4.5 V | 0.7 nC @ 4.5 V |
| Vgs (Max) | ±8V | ±8V |
| Input Capacitance (Ciss) (Max) @ Vds | 15.8 pF @ 15 V | 15.8 pF @ 15 V |
| FET Feature | - | - |
| Power Dissipation (Max) | 120mW (Ta) | 120mW (Ta) |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount |
| Supplier Device Package | 3-XLLGA (0.62x0.62) | 3-XLLGA (0.62x0.62) |
| Package / Case | 3-XFDFN | 3-XFLGA |
